:OPERegister:CONDition (Operation Status Condition Register)
(see page 860)
Query Syntax
:OPERegister:CONDition?
The :OPERegister:CONDition? query returns the integer value contained in
the Operation Status Condition Register.
Return Format
<value><NL>
<value> ::= integer in NR1 format.
See Also • "Introduction to Root (:) Commands" on page 154
• ":CHANnel<n>:PROTection" on page 236
• ":OPEE (Operation Status Enable Register)" on page 169
Table 63 Operation Status Condition Register
Bit Name Description When Set (1 = High = True), Indicates:
14-12 --- --- (Not used.)
11 OVLR Overload A 50 input overload has occurred.
10 --- --- (Not used.)
9 MTE Mask Test Event A mask test event has occurred.
8-6 --- --- (Not used.)
5Wait
Trig
Wait Trig The trigger is armed (set by the Trigger Armed
Event Register (TER)).
4 --- --- (Not used.)
3 Run Running The oscilloscope is running (not stopped).
2-0 --- --- (Not used.)
Wa i t
Trig
Run
Arm
Reg
AER?
Run bit set if oscilloscope not stopped
:OPEReration:CONDition?
Operation Status Condition Register
:OPEE
:OPEE?
Operation Status Enable
(Mask) Register
From Overload
Event Registers
To OPER bit in
Status Byte
Register
OVLR
+

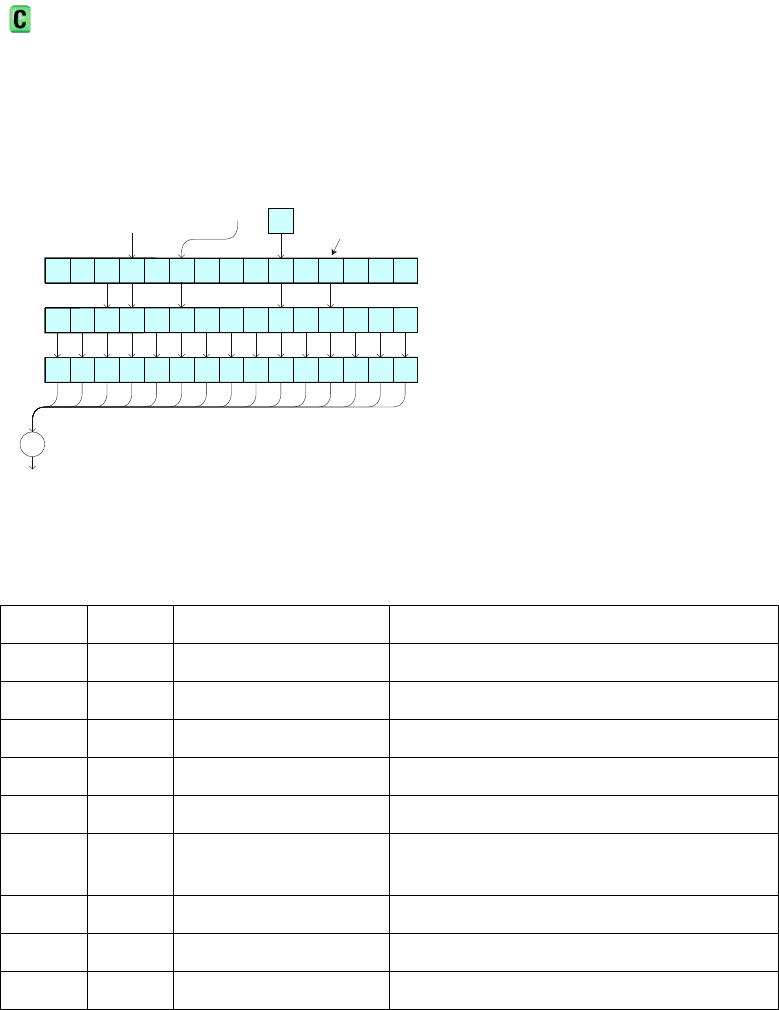

OR
10234567981011121314
Wa i t
Trig
Run
:OPERation[:EVENt]?
Operation Status Event Register
OVLR
11
5 3
From Mask Test
Event Registers
MTE
MTE
9
