144 Agilent InfiniiVision 3000 X-Series Oscilloscopes Programmer's Guide
5 Common (*) Commands
*SRE (Service Request Enable)
(see page 860)
Command Syntax
*SRE <mask>
<mask> ::= integer with values defined in the following table.
The *SRE command sets the bits in the Service Request Enable Register.
The Service Request Enable Register contains a mask value for the bits to
be enabled in the Status Byte Register. A one in the Service Request
Enable Register enables the corresponding bit in the Status Byte Register.
A zero disables the bit.

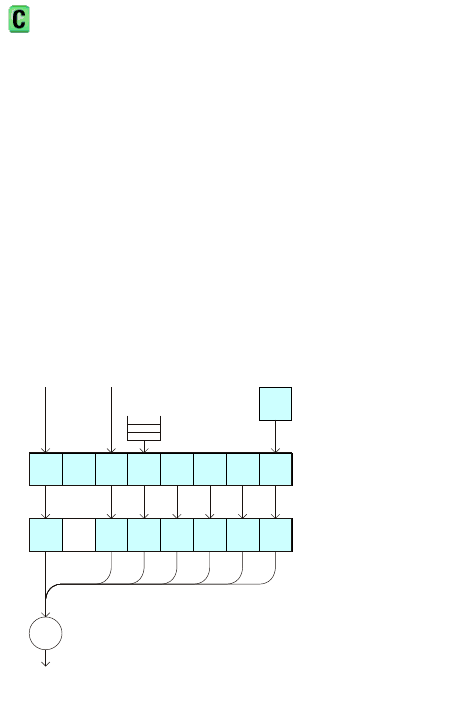

From
Operation
Status
Registers
10234567
+
OPER TRGMAVESB
RQS/
MSS
TRG
Reg
TER? Trigger Event Register
*SRE
*SRE?
*STB? Status Byte Register
Service Request Enable
(Mask) Register
Output
Queue
SRQ
From
Standard
Event
Status
Registers
USR
MSG
Service Request
OR
