Multimode Source for 6510 Q-TOF LC/MS Set-Up Guide 19
Installation 1
To convert from ESI or APCI to the multimode source

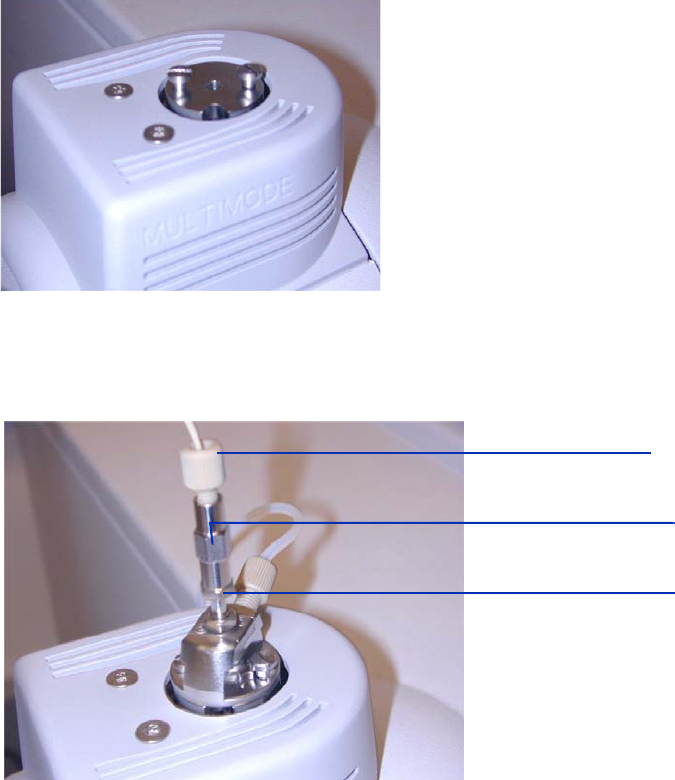

Figure 17 No nebulizer on top of the multimode source
15 Connect the 1/8-inch nebulizer gas tubing from the LC/MS mainframe to
the nebulizer gas fitting. See Figure 18.
Figure 18 Nebulizer with gas tubing connected
Sample Tubing
Nebulizer zero dead
volume
Nebulizer gas fitting
