18 Multimode Source for 6510 Q-TOF LC/MS Set-Up Guide
1 Installation
To convert from ESI or APCI to the multimode source

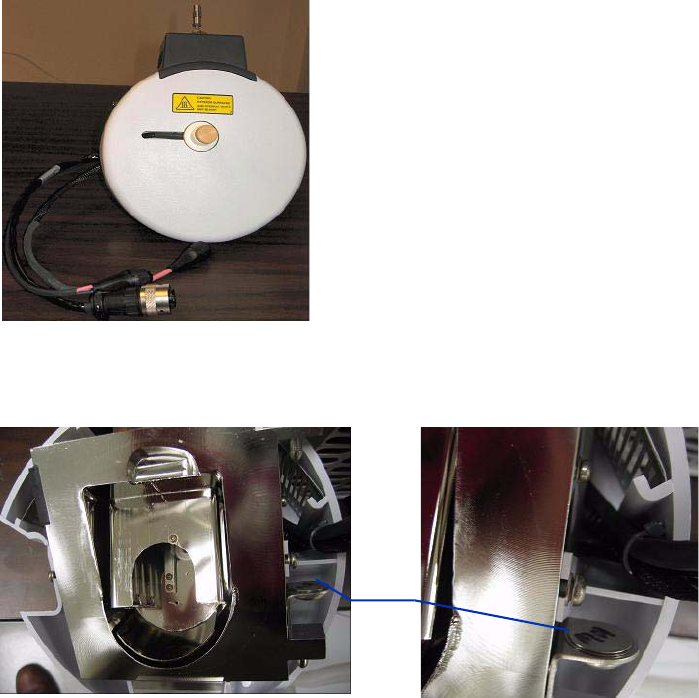

Figure 15 Multimode Spray Chamber
13 Install the spray chamber on the spray chamber mount.
Figure 16 Multimode source with I-Button
14 Install the nebulizer on the multimode source spray chamber.
I-Button
