User`s guide

Figure 2. TRL/LRM main control panel
4. Selecting ports
In the
Ports
menu, select the test ports for which you want to perform calibration. For example, to perform
2-port TRL/LRM calibration for test ports 1 and 2, select Ports:1-2.
NOTE
The TRL/LRM Calibration VBA Macro automatically detects the ENA’s active channel, and calibration is
performed for the active channel. The macro does not perform calibration for the ENA’s inactive channels.
5. Defining calibration kit
Define the values of the calibration standards you use in the calibration.

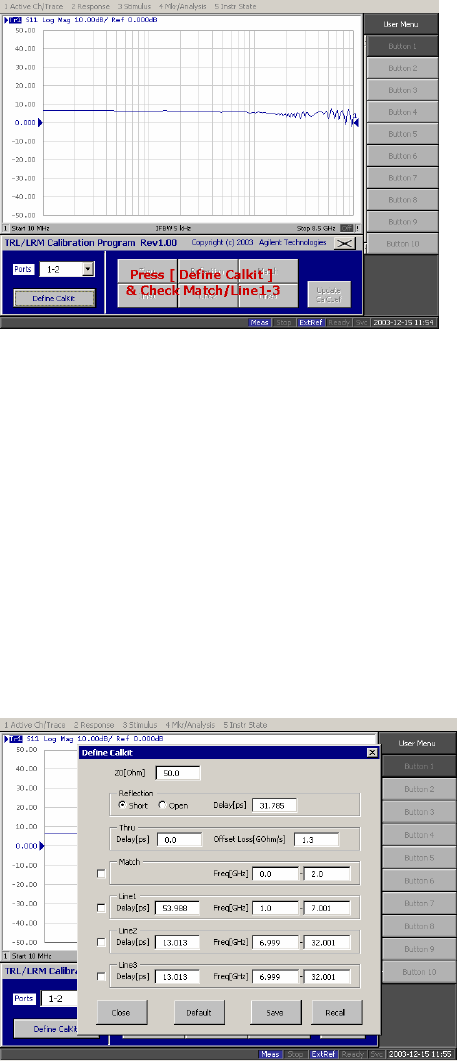

5-1) Press the Define CalKit key to bring up the calibration kit definition menu shown in Figure 3.
Figure 3. Calibration kit definition menu
