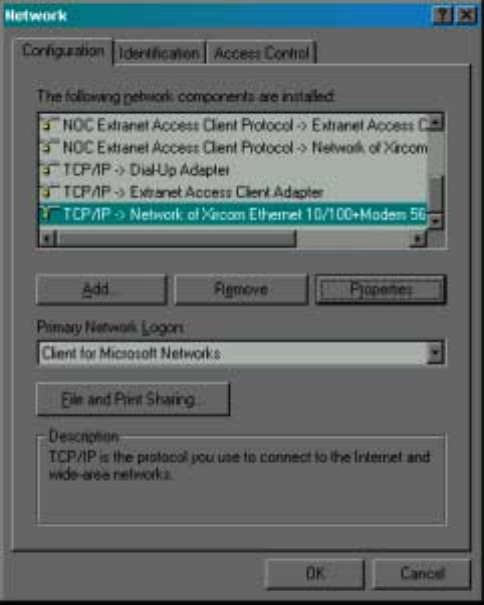

b. In the scroll box labeled “The following network components are installed:”

highlight your Ethernet network device.

c. Select the Properties box

d. In the TCP/IP Properties box, select the IP Address tab

1. Write down the original IP address here (in case you want to restore the

original settings):

PC’s original IP address: _________________________________

2. Select “Specify an IP address”

3. Enter almost the same address as the Test Set’s LAN IP Address (see

step 3.2.3.2 above), except change the 4

set of digits to an integer

between 1 and 254. Enter it in the field labeled IP Address.

Example: Test Set IP Address = 111.222.33.224

Set the PC IP Address= 111.222.33.222

4. Write down the NEW IP address here:

PC’s NEW IP address: _________________________________

IMPORTANT: The DUT IP Address, the Test Set ‘s LAN IP Address, and

the PC IP Address cannot be the same. Also, do not set the 4

set of

numbers to 0; and do not set the 4

set of numbers greater than 254. (In the

example above, the 4

set of numbers is set to “222”.)
