Getting Started 1
Introduction
E3632A User’s Guide 5

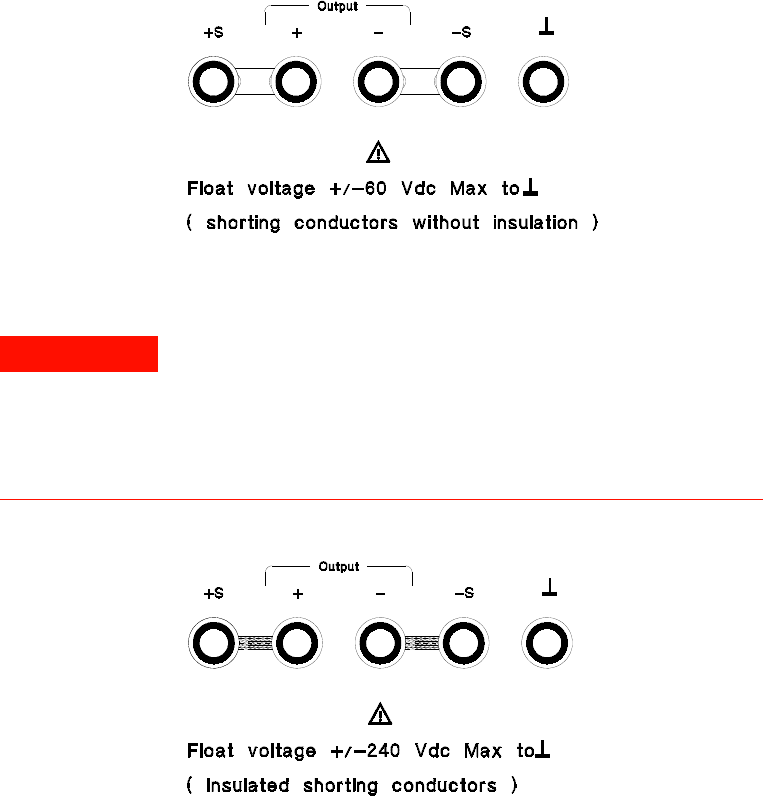

Figure 1-1 Shorting conductors without insulation
WARNING
Outputs can be floated to maximum of ±240 Vdc provided that the
metal shorting bars without insulation are either replaced with
insulated conductors or they are removed from the terminals so
there is no operator access to the output conductors without
insulation. All field wiring insulation must be adequate for the
voltage present.
