7 Characteristics and Specifications
Physical Characteristics
168 E3632A User’s Guide
Physical Characteristics

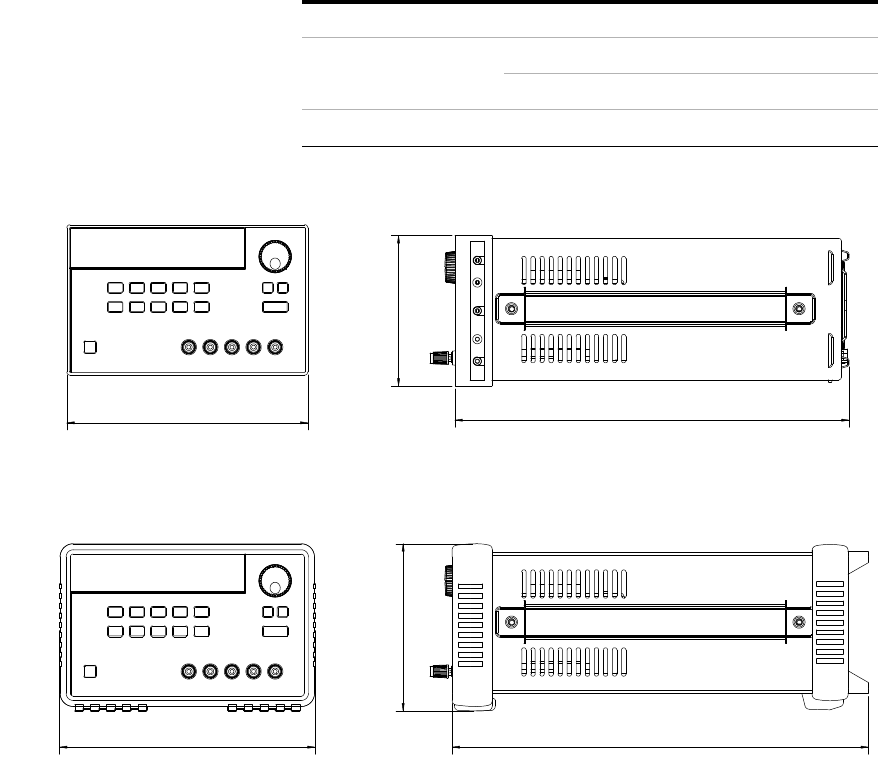

Figure 7-1 E3632A dimensions
Table 7 - 1 Physical characteristics
Dimensions (W × H × D) 212.6 mm × 132.6 mm × 348.2 mm
Weight Net 9.5 kg
Shipping 12 kg
Cooling Fan cooled
