6 Tutorial
Remote Programming
164 E3632A User’s Guide
Remote Programming
During remote programming a constant- voltage regulated
power supply is called upon to change its output voltage
rapidly. The most important factor limiting the speed of
output voltage change is the output capacitor and load
resistor.

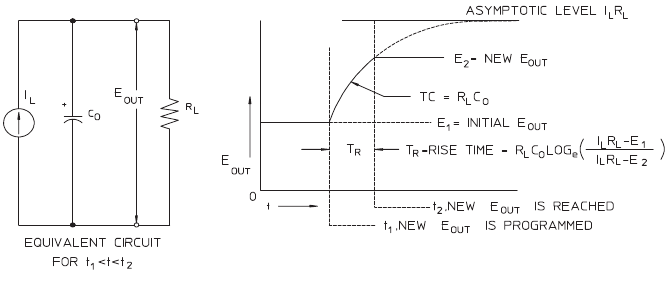

Figure 6-8 Speed of response — programming up (full load)
The equivalent circuit and the nature of the output voltage
waveform when the supply is being programmed upward are
shown in Figure 6- 8. When the new output is programmed,
the power supply regulator circuit senses that the output is
less than desired and turns on the series regulator to its
maximum value I
L
, the current limit or constant current
setting.
This constant current I
L
charges the output capacitor C
O
and load resistor R
L
parallel. The output therefore rises
exponentially with a time constant R
L
C
L
towards voltage
level I
L
R
L
, a value higher than the new output voltage being
programmed.
