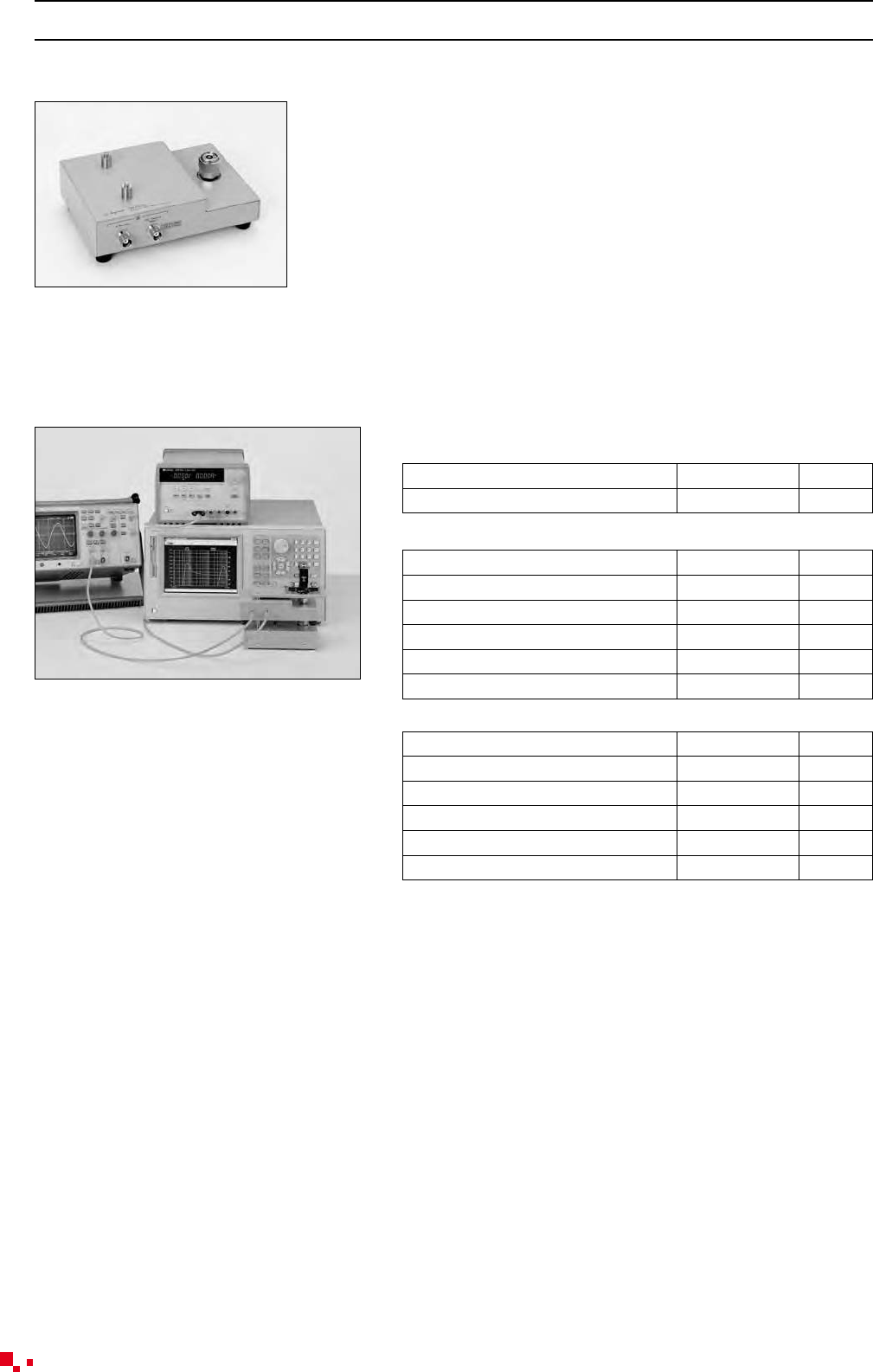

16200B External DC Bias Adapter
Terminal Connector: 7 mm
DC BIAS Input connector: BNC(f)
Voltage Monitor connector: BNC(f)
Dimensions (approx.): 170(W) x 70 (H) x 130(D) [ mm]
Weight (approx.): 900 g
Up to 3 GHz (7 mm) DC Bias Accessories
Description: This test fixture is designed to measure a DUT with DC
bias. By connecting an external DC current source to the 16200B, it
can supply a bias current across the DUT of up to ±5 Adc through a
7 mm port.
Applicable Instruments:4291B*4294A42942A4287A*E4982A
E5061B-3L5withpt.E5061B-00516201AE4991A**
henusedwith16085B*4279A*4284A*4285A4288A*E4980A
E4981A)
*denotestheinstrumentisobsolete.
**applicableinalimitedreuencyrange.
Frequency: 1 MHz to 1 GHz
DC Bias: Up to 5A, 40 V (Input)
Operating Temperature: 0°C to 55°C
Applicable Fixtures:16191A*16192A16193A*16194A
16196A/B/C/D16197A16092A16093A/B*
*denotestheinstrumentisobsolete.
Furnished Accessories:
16200B-001 Shorting Device Set
16200B-001 Load Device Set
Options:
16200B-001: Add Working Std Set
Compensation and Measurement: When using the 4291B, follow these
instructions: Perform open, short, load and low-loss calibration at the
7 mm test port of the 4291B. Connect the 16200B to the 7 mm test port,
and connect the test fixture onto the 16200B. Open, short, and load com-
pensations are recommended before measurement. Use the short bars
and 51 Ω SMD resistors furnished with 16200B-001 to perform short and
load compensation respectively.
When using other instruments, follow these instructions:
Connect the 16200B to the 7 mm test port of the measurement instru-
ment. Perform open, short, load (and low-loss calibration) at the 7 mm
test port of the 16200B. Then, connect the test fixture onto the 16200B
and perform open, short, and electrical length compensations in the
usual manner.
Connection example
Description P/N Qty.
Operation and Service Manual 13200-90011 1
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) 16197-29001 2
1 x 0.5 x 0.5 (mm) 16191-29005 2
1.6 x 0.8 x 0.8 (mm) 16191-29006 2
2.0 x 1.2 x 0.8 (mm) 16191-29007 2
3.2 x 1.6 x 0.8 (mm) 16191-29008 2
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) 0699-6926 5
1 x 0.5 x 0.5 (mm) 5182-0433 5
1.6 x 0.8 x 0.8 (mm) 5182-0434 5
2.0 x 1.2 x 0.8 (mm) 5182-0435 5
3.2 x 1.6 x 0.8 (mm) 5182-0436 5
