User's Manual

The Test Set’s Features
34

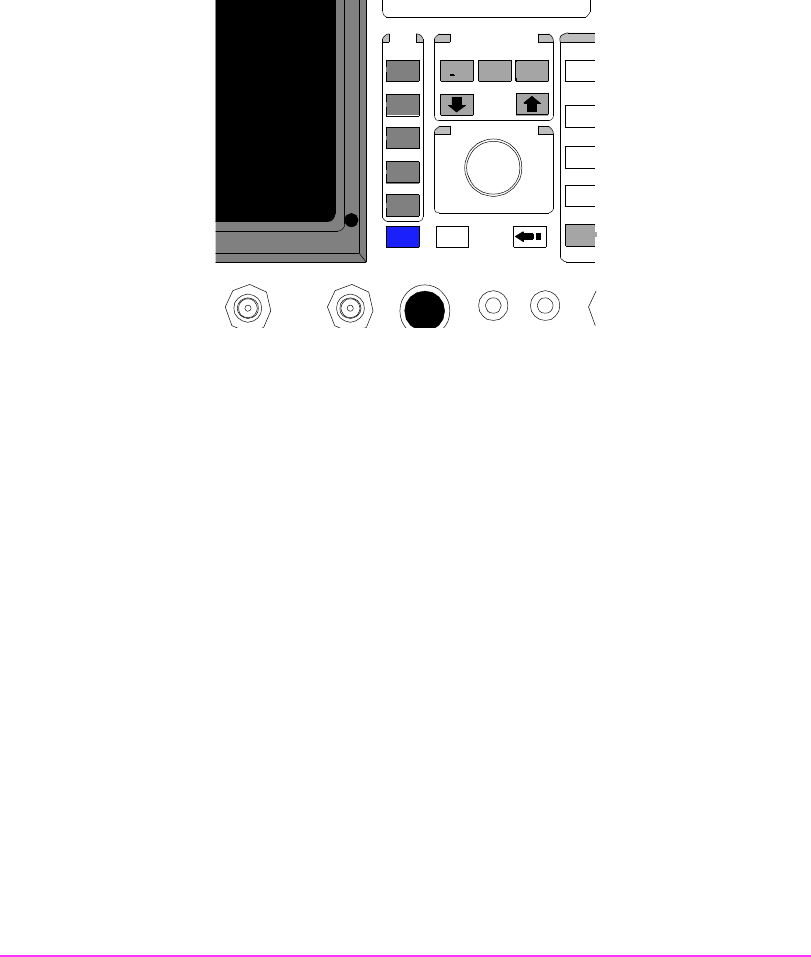

Knobs
The Cursor Control Knob
• Moves the cursor to another field (rotate CW/CCW).
• Selects fields, screens, and settings from a list of choices. (push).
• Increments and decrements numeric field values (push to select, rotate the
knob to increment or decrement the value, then push again to enter).
Volume and Squelch Knobs
VOLUME Control − adjusts the speaker volume for monitoring.
SQUELCH Control
− adjusts the squelch threshold for AM, FM, or
SSB signals.
DATA FUNCTIONS
INCR
: 10
REF SET
INCR
SET
METER
INCR
X10
AVG
LO LIMIT HI LIMIT
CURSOR CONTROL
PUSH TO SELECT
CANCELSHIFT
k1
K1
k2
K2
k3
K3
k4
ASSIGN
k5
RELEASE
USER
7
4
1
0
ON/OFF
YES
A
U
SQUELCHVOLUMEMIC/ACC
ANT IN
OUT
