User's Manual

Using the Tracking Generator
222
Passive Cavity Insertion and Return Loss Measurement

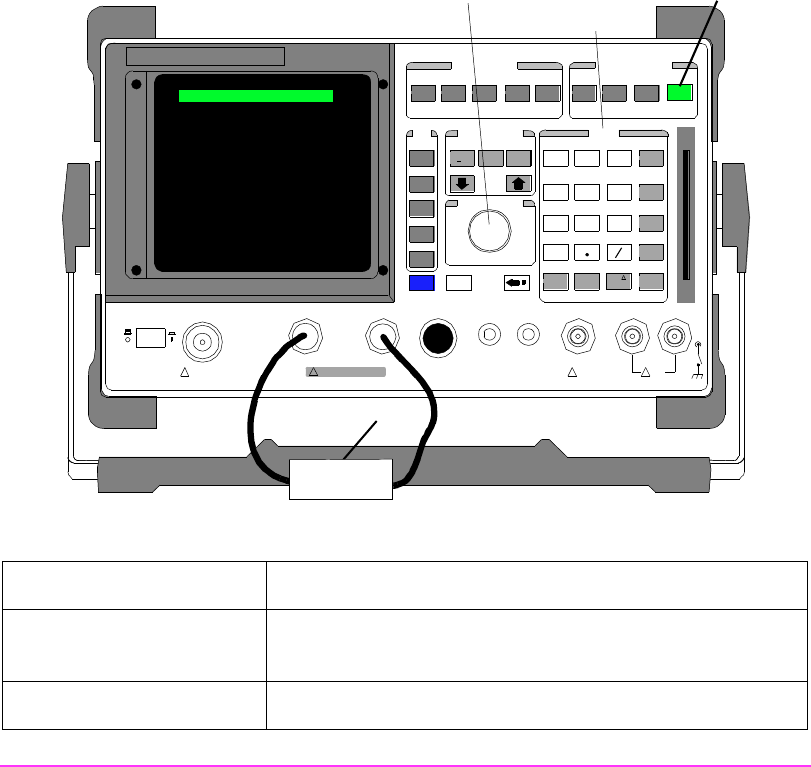

This procedure is used to measure the insertion loss and return loss of
passive cavities using the Spectrum Analyzer/Tracking Generator
option. The cavities are tuned to the desired pass frequency and band-
pass/insertion loss. Once properly tuned, insertion loss and return loss
are measured. Return loss can be converted into VSWR.
Test Set Options Required
Spectrum Analyzer/Tracking Generator (option 102).
Additional Equipment
Required
Return Loss Bridge and a 50Ω Load.
Special Test Considerations
See "Coaxial Cable" on page 46
.
