161
Chapter 3: Reference
The Symbols Tab

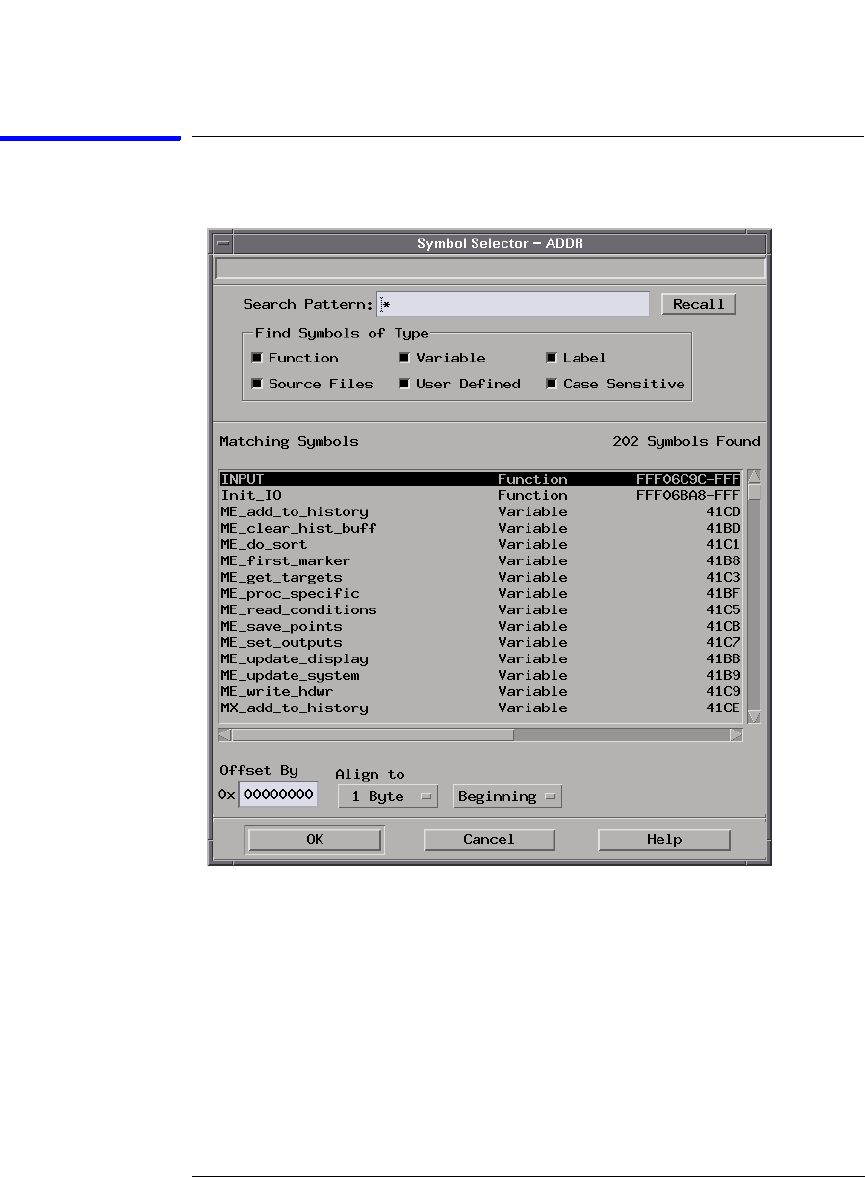

Symbols Selector Dialog
Search Pattern: Lets you enter partial symbol names and the asterisk
wildcard character (*) to limit the symbols to choose from
(see “Search Pattern” on page 162). Use the Recall button
to select from previous search patterns.
Find Symbols of
Type Lets you limit the types of symbols to choose from.
Matching
Symbols Lists the symbols that match the search pattern. You
choose a symbol from this list.
