146
Chapter 3: Reference
The Trigger Tab
The Trigger Tab
The Trigger tab is used to tell the analyzer when to capture data. The
key event is the trigger.
In the Agilent Technologies 16750A/B logic analyzer, you can insert
multiple trigger actions. When you insert multiple trigger actions, the
trigger marker in the display windows is placed on the first sample
whose evaluation caused a branch through an associated trigger action.

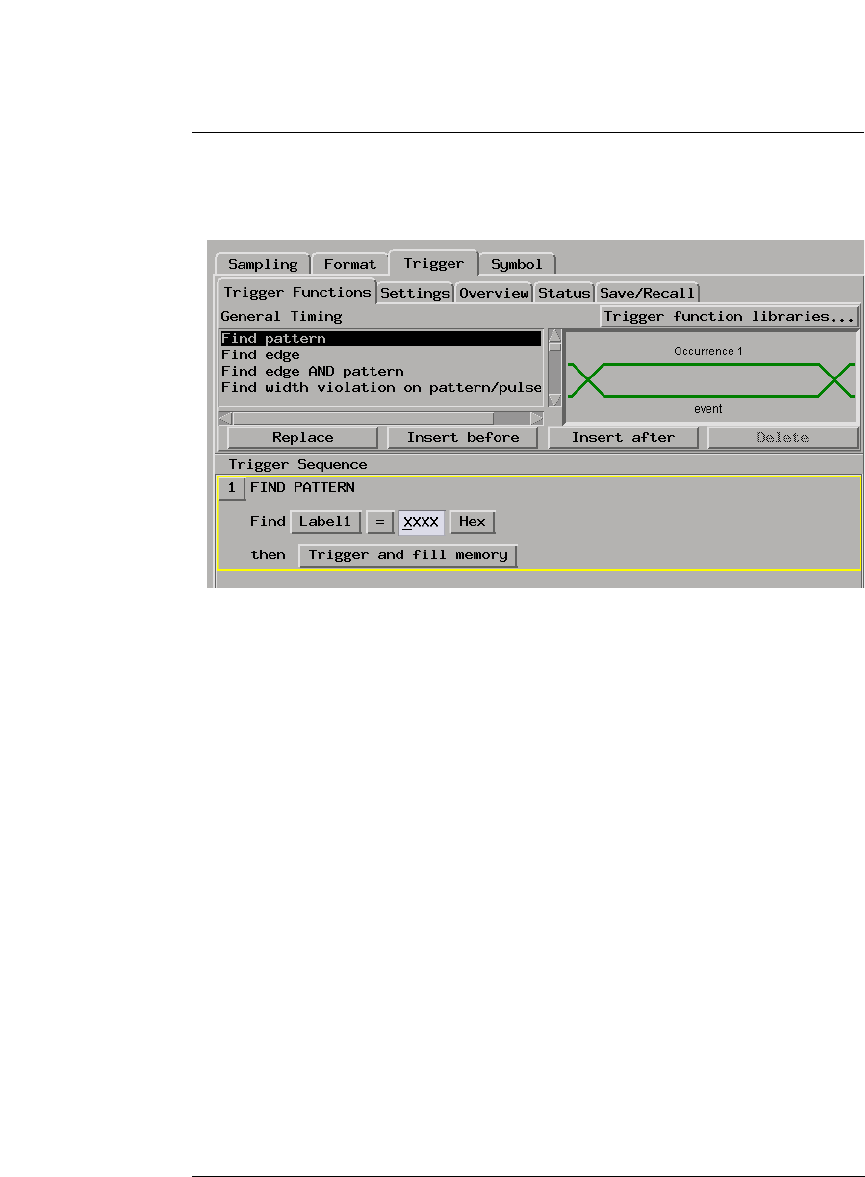

The Trigger tab has two main areas: On top, tabs of functions and
controls to build your trigger; and beneath the tabs, the current trigger
sequence.
Some controls are also located in the logic analyzer window's menu bar.
• “Trigger Functions Subtab” on page 147
• “Settings Subtab” on page 154
• “Overview Subtab” on page 155
• “Default Storing Subtab” on page 156
• “Status Subtab” on page 157
