2-9
Preparing the Oscilloscope for Use
To use the digital probes (mixed-signal oscilloscope only)

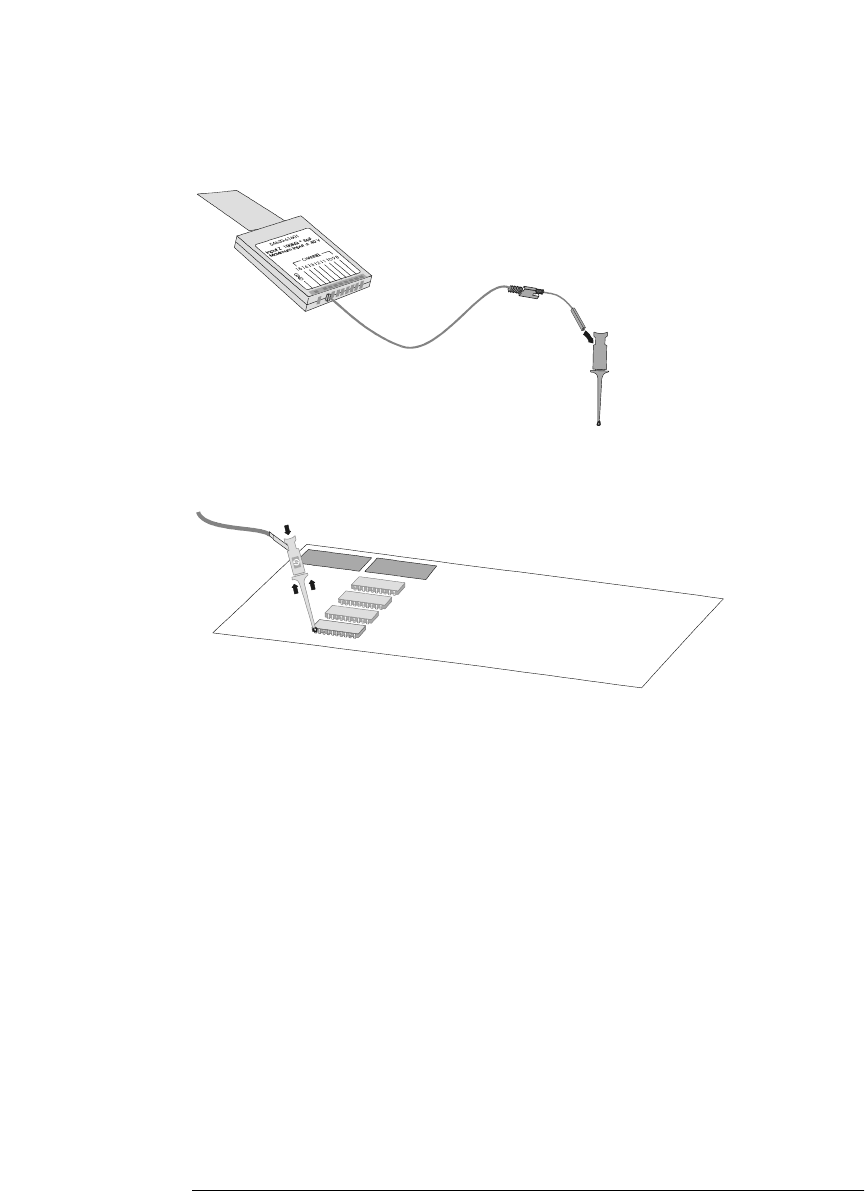

3 Connect a grabber to one of the probe leads. Be sure to connect the
ground lead. (Other probe leads are omitted from the figure for clarity.)
4 Connect the grabber to a node in the circuit you want to test.
Grabber
