2-4
Preparing the Oscilloscope for Use

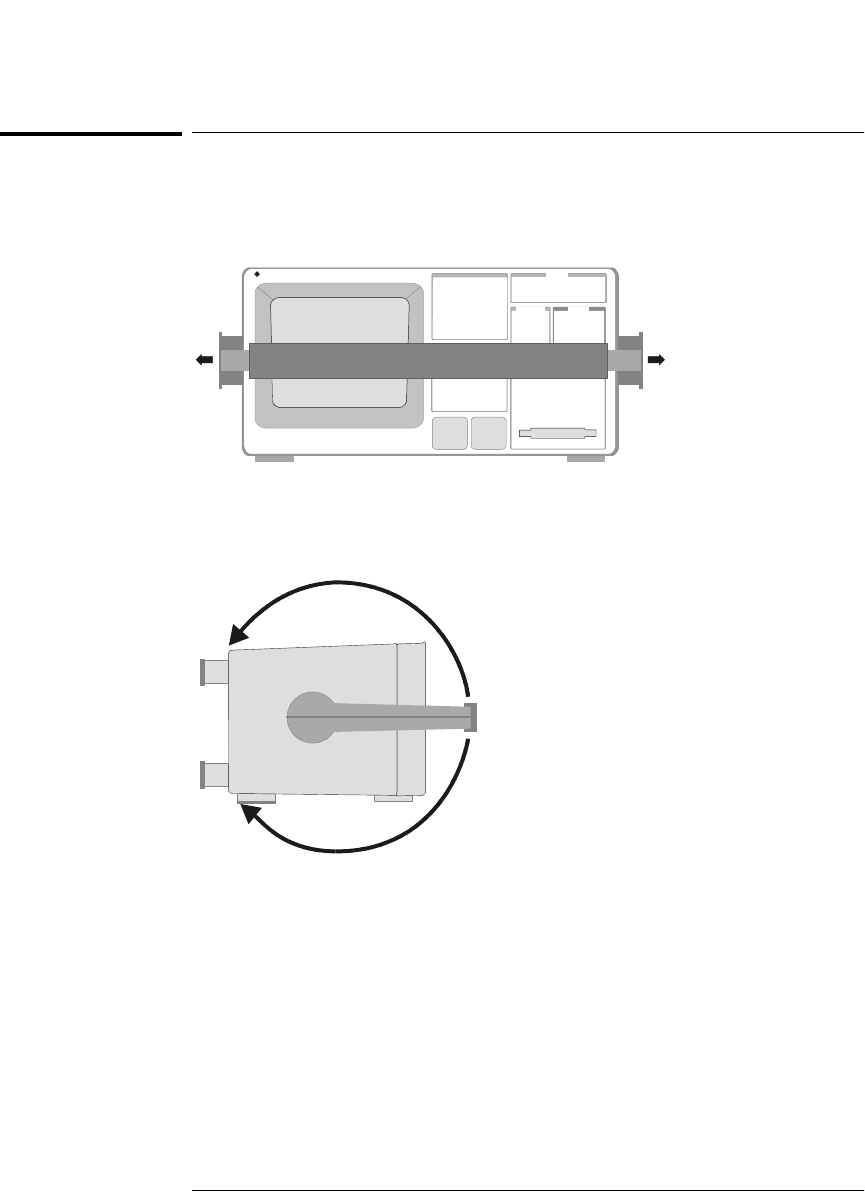

To adjust the handle
To adjust the handle
1 Grasp the handle pivot points on each side of the instrument and pull
the pivot out until it stops.
2 Without releasing the pivots, swivel the handle to the desired position.
Then release the pivots. Continue pivoting the handle until it clicks into
a set position.
54622D
MIXED SIGNAL OS CILLOSCOPE
CHANNE L
INPUTS
5 ns1 s
150
Time/ Div
Sele ct
Agilent
