16 U2121A-101 Operating Guide

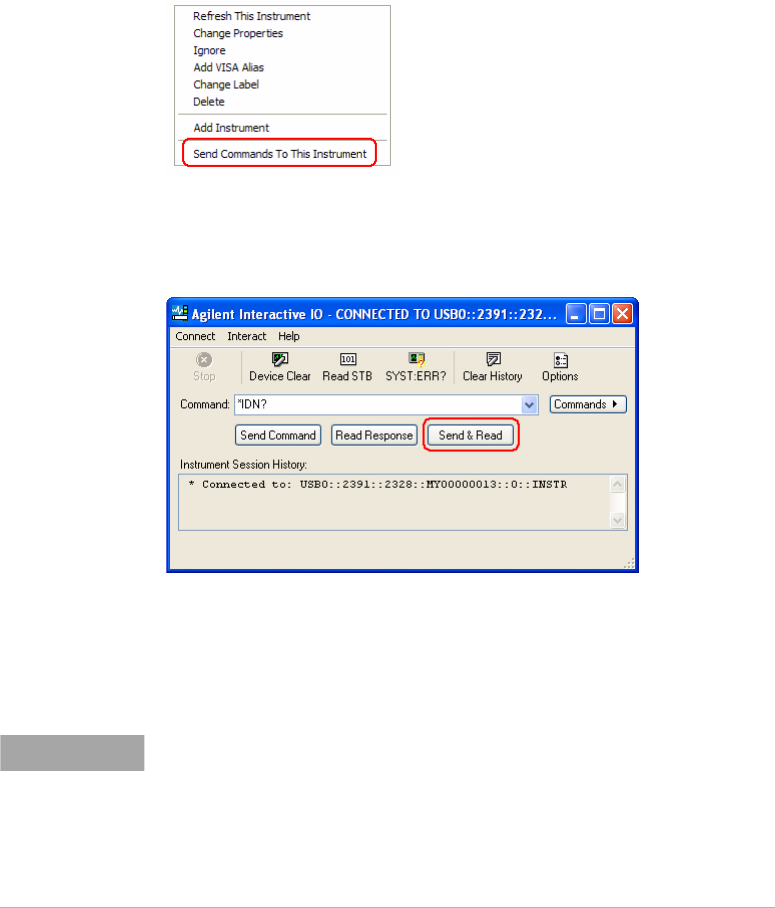

6 The Agilent Interactive IO dialog box will appear. Click Send & Read
to send the *IDN? default command. The instrument’s response
should appear in the Instrument Session History panel.
7 If the Connection Expert can successfully communicate with the
U2121A, this indicates that the instrument has been installed
correctly.
NOTE
• The IO Control will launch automatically when you start your PC.
• Launching the VEE without the IO Control running will cause failure of the
VEE to detect or establish any connection with the U2121A connected to
your PC.
• To run the IO Control, go to Start > All Programs > Agilent IO Libraries
Suite > Utilities > IO Control.
