12 U2121A-101 Operating Guide
B. Install prerequisites and software
There are two options you may choose from to install the
prerequisites and Agilent U2121A-Based RF Switch Driver Software.
You may choose to install from the provided Product Reference
CD- ROM or obtain the installation software from Agilent's website to
install the software.
Installing the application software from CD
1 Disconnect any instrument that is connected to your PC and close
all other applications on your PC.
2 Insert the Product Reference CD- ROM into your CD- ROM drive.

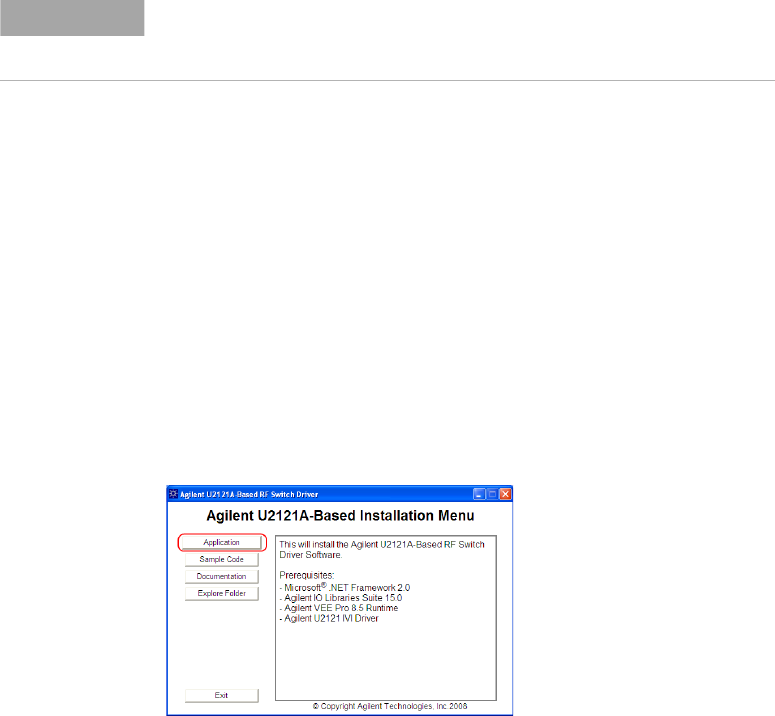

3 The installer will automatically launch the Agilent U2121A- Based
Installation Menu. Click Application to begin installation of the
following items:
i Microsoft .NET Framework 2.0
ii Agilent VEE Pro 8.5 Runtime
iii Agilent U2121 IVI Driver
iv Agilent U2121A- Based RF Switch Driver Software
NOTE
Prior to installing the prerequisites and Agilent U2121-Based RF Switch Driver
Software, ensure that your PC meets the minimum system requirements for
installation and operation processes.
U2931A Operating Guide.book Page 12 Tuesday, June 10, 2008 10:17 AM
