U2121A-101 Operating Guide 5

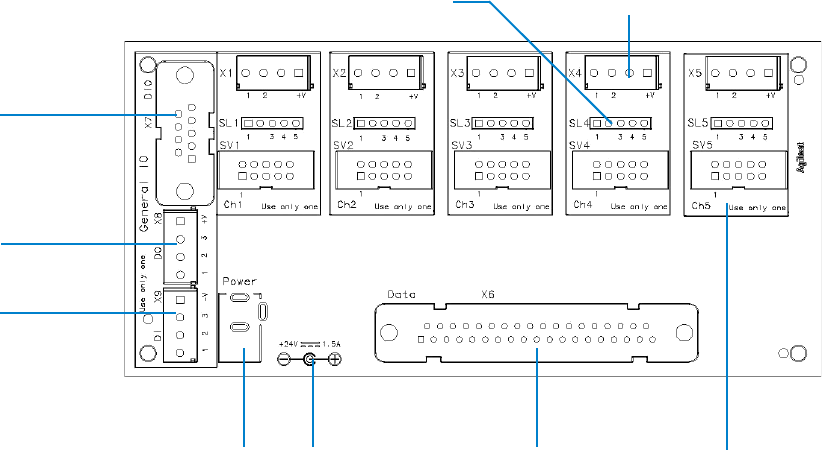

Product at a Glance
Product outlook
Top view (without casing)
Connector for
general I/O
Connector for
general output
Connector for
general input
DC power jack Power Digital IO Connector for
rating terminal N181x RF switches
Connector for Connector for 8762/3/4
8765x-024 RF switches 8765x/324 RF switches
