Power Meter Operation
Selecting Units of Measurement from the Softkeys
Agilent E4418B User’s Guide 2-33
Selecting Units of Measurement from the Softkeys

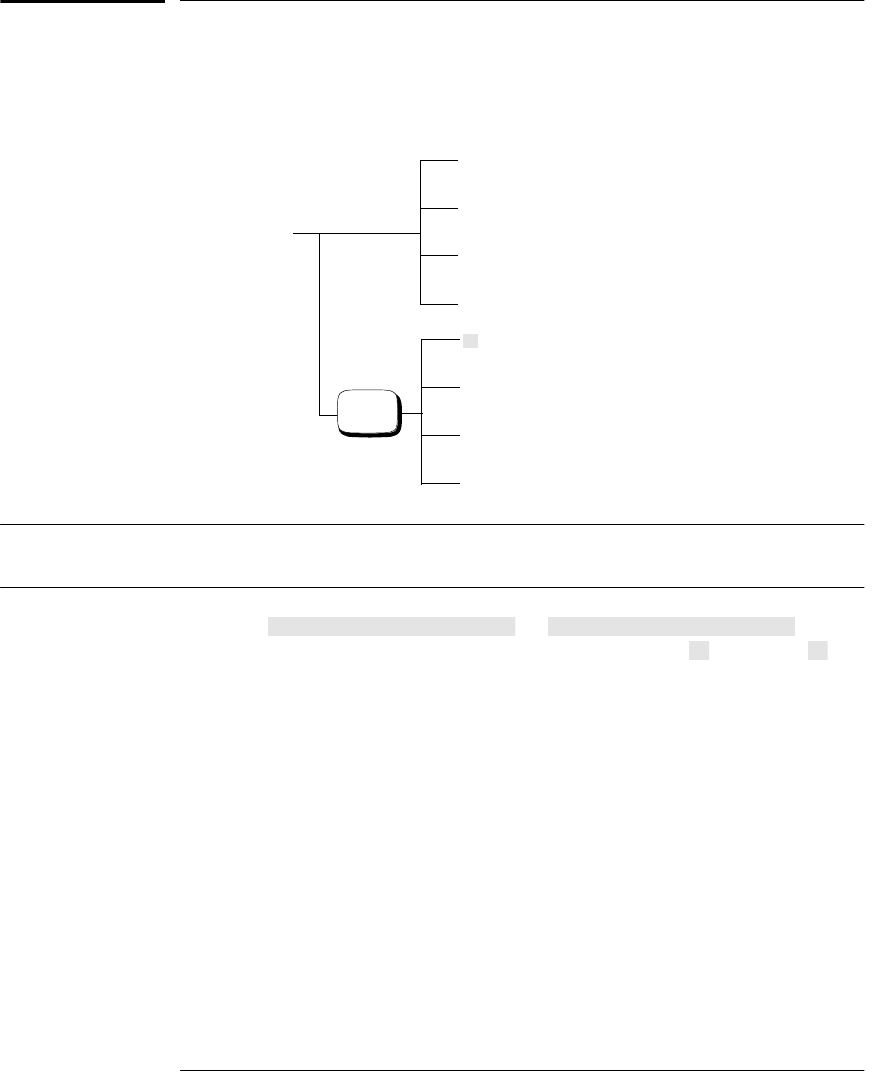

In various softkey menu structures you are required to enter the units of
measurement for power. In some cases, due to the wide power range
available, the following menu is displayed:
Note Some softkeys may be grayed out so that an invalid value cannot
be entered.
Pressing or
increases or decreases the multiplier shown in front of . Pressing
after the correct multiplier has been selected confirms the entry.
More
Increment
Decrement
Multiplier
Multiplier
W
Cancel
mW
Cancel
µW
nW
Increment Multiplier Decrement Multiplier
W W
