Getting Started
Rack Mounting the Power Meter
Agilent E4418B User’s Guide 1-19
Rack Mounting the Power Meter
You can mount the power meter in a standard 19 inch rack cabinet using
one of three optional kits. Instructions and mounting hardware are
included with each rack mounting kit. Any Agilent System II instrument
can be rack mounted beside the Agilent E4418B power meter.
To rack mount the power meter:

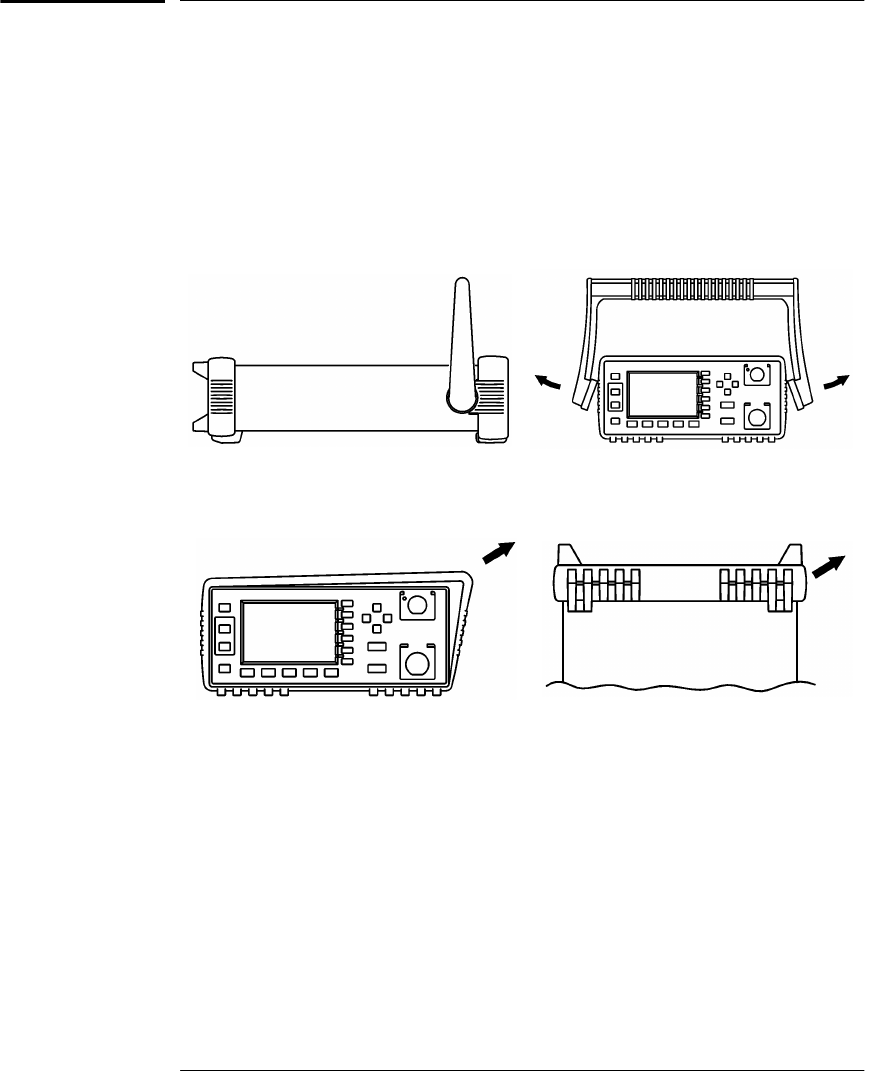

1. Remove the handle by rotating it to the vertical position and
pulling the ends outward
2. Remove the rubber bumper by stretching a corner and sliding it
off.
Front
Rear (bottom view)
