Menu Reference
Front Panel Menu Reference Diagramatical Keys
3-36 Agilent E4418B User’s Guide

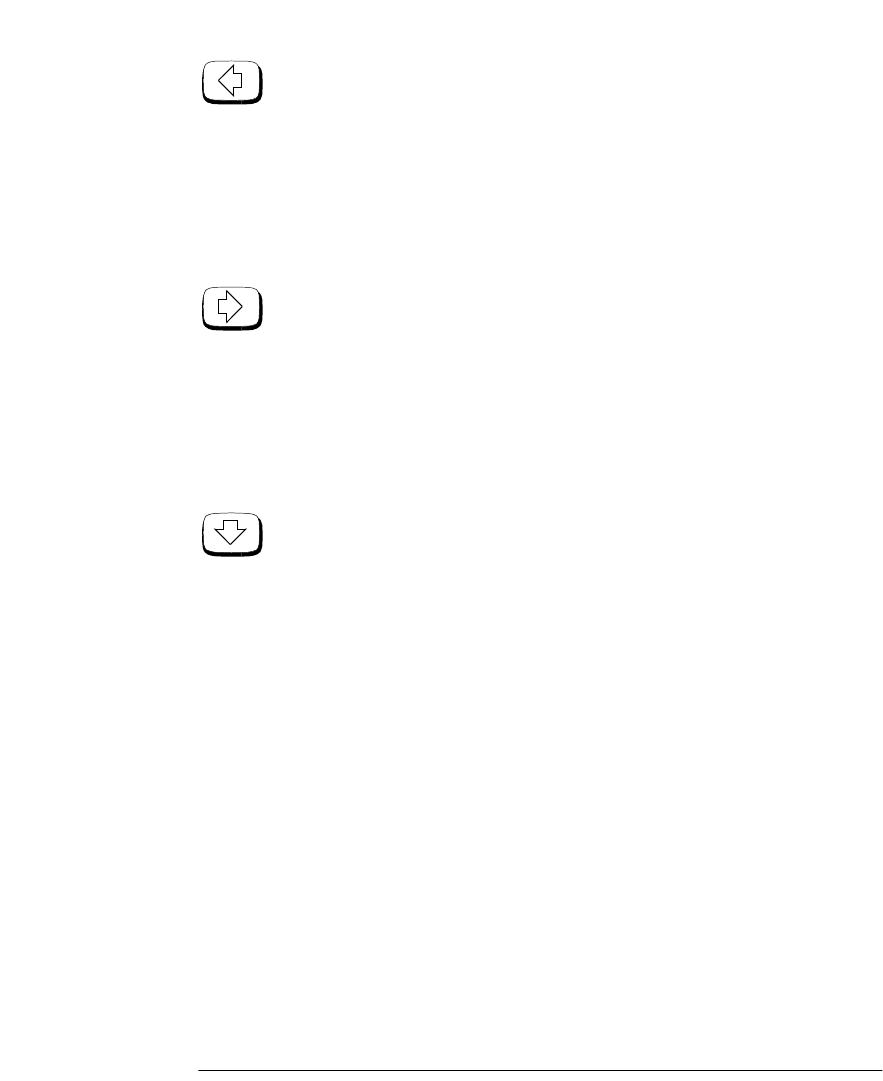

Diagrammatical Hardkeys
Press this hardkey to:
• assist in modifying alphanumeric data that is to be entered into
the power meter. This hardkey moves the position of the cursor to
the left on the currently selected parameter.
• select fields for editing on the “Edit Table” screen.
Press this hardkey to:
• assist in modifying alphanumeric data that is to be entered into
the power meter. This hardkey moves the position of the cursor to
the right on the currently selected parameter.
• select fields for editing on the “Edit Table” screen.
Press this hardkey to:
• decrement the alphanumeric digit on which the cursor is currently
positioned. That is, digits scroll 9 through 0, and characters
lowercase z through a, uppercase Z through A, then underscore.
• select fields for editing on the “Edit Table” screen.
• select a table in the “Sensor Cal Tables” screen.
• select a file in the “Save” and “Recall” screens.
