To set the oscilloscope to trigger on an edge

3-18

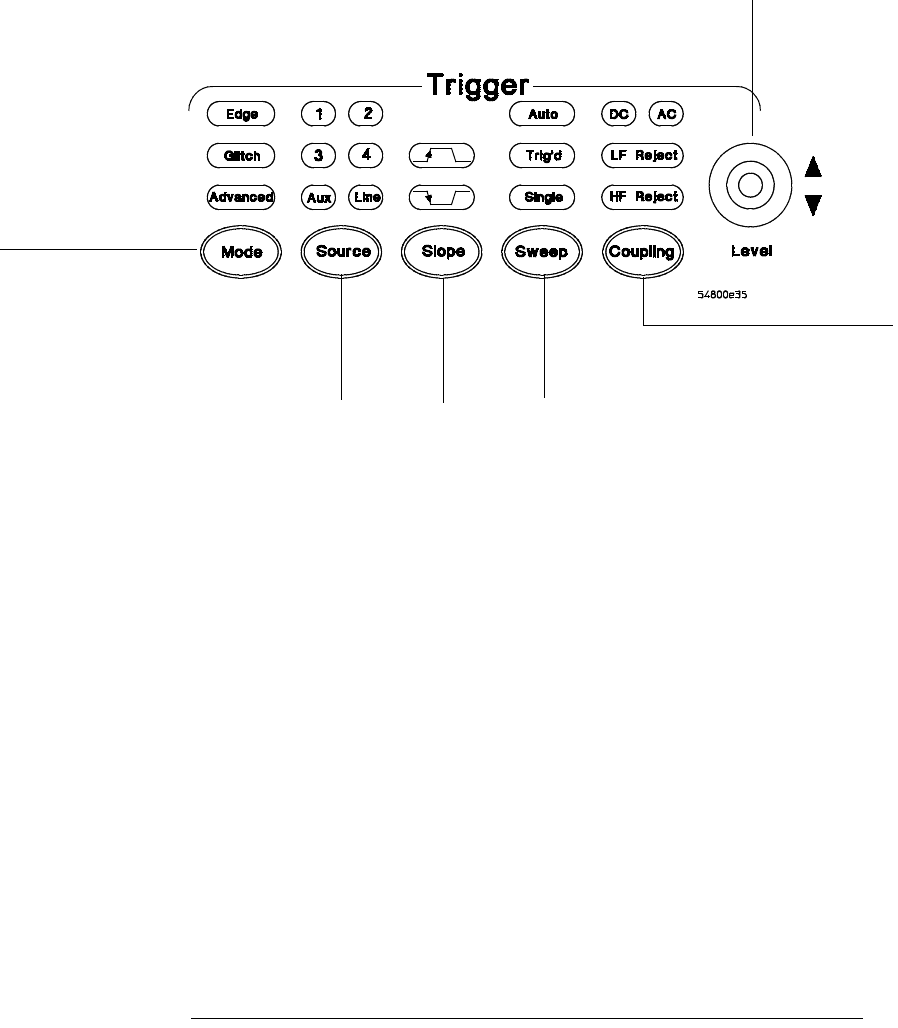

Figure 3-12

Trigger Controls and Indicators for 8000A Series Oscilloscopes

Select Edge

mode

Select the

trigger

source

Select rising

or falling

edge for the

trigger

Select Trig’d

Single, or Auto

Set the coupling

characteristics for the

trigger (8000A series

oscilloscopes)

Set trigger level
