Setting Up the Oscilloscope
To connect the digital probe
1-21
To connect the digital probe
1 Push the small connector end of the digital cable with the tab key facing
left into the digital connector.
2 Tighten both thumb screws.

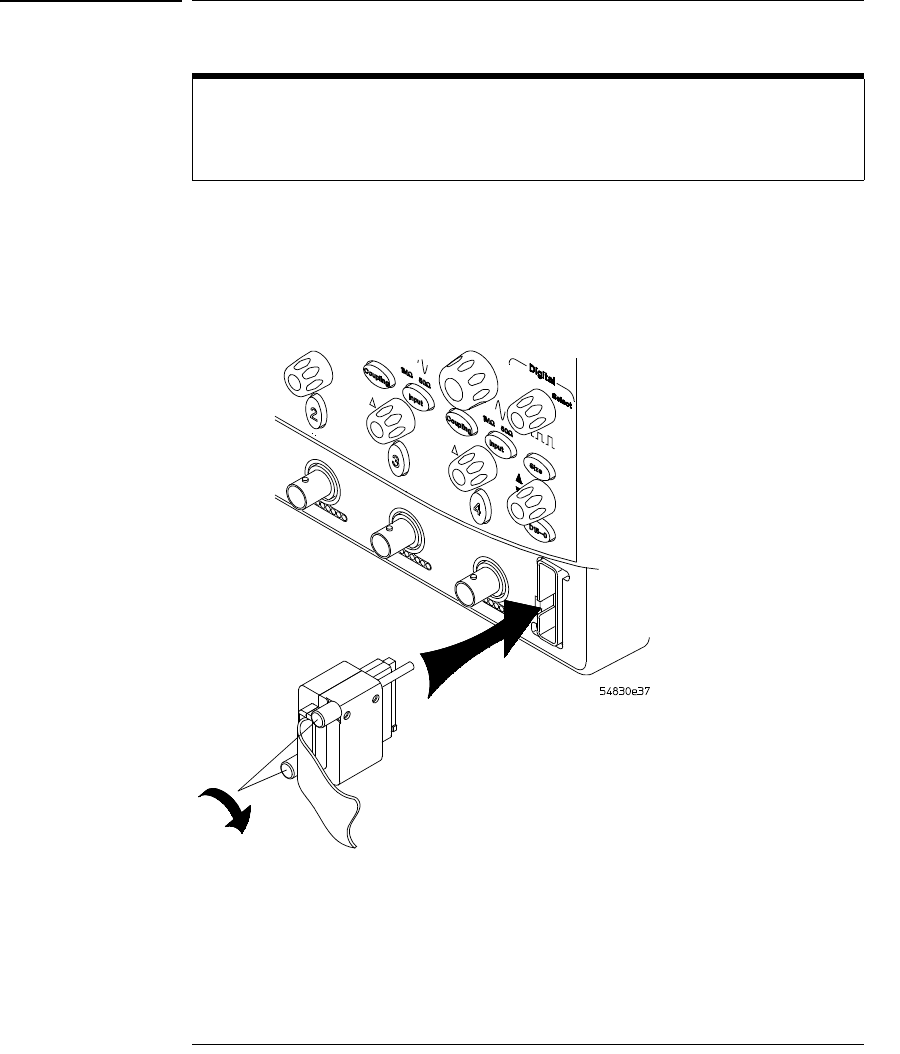

Figure 1-10
Connecting the Digital Cable to the Oscilloscope
The MSO (Mixed Signal) series oscilloscopes are the only oscilloscopes that have
tightly integrated 16 digital timing channels.
The digital flying lead marked clk (clock) is unused. All the other digital flying leads
are used for the digital timing channels.
