Setting Up the Oscilloscope
To connect SMA Cables
1-20
To connect SMA Cables
You can connect an SMA cable to the 80000B series Infiniium oscilloscopes by
using the 54855-67604 SMA to precision BNC adaptor.
1 Attach the two SMA to precision BNC adaptors to the ends of an SMA
cable.
2 Push the SMA to precision BNC adaptors onto the oscilloscope BNC
connectors.
3 Tighten the thumbscrews until they are snug.

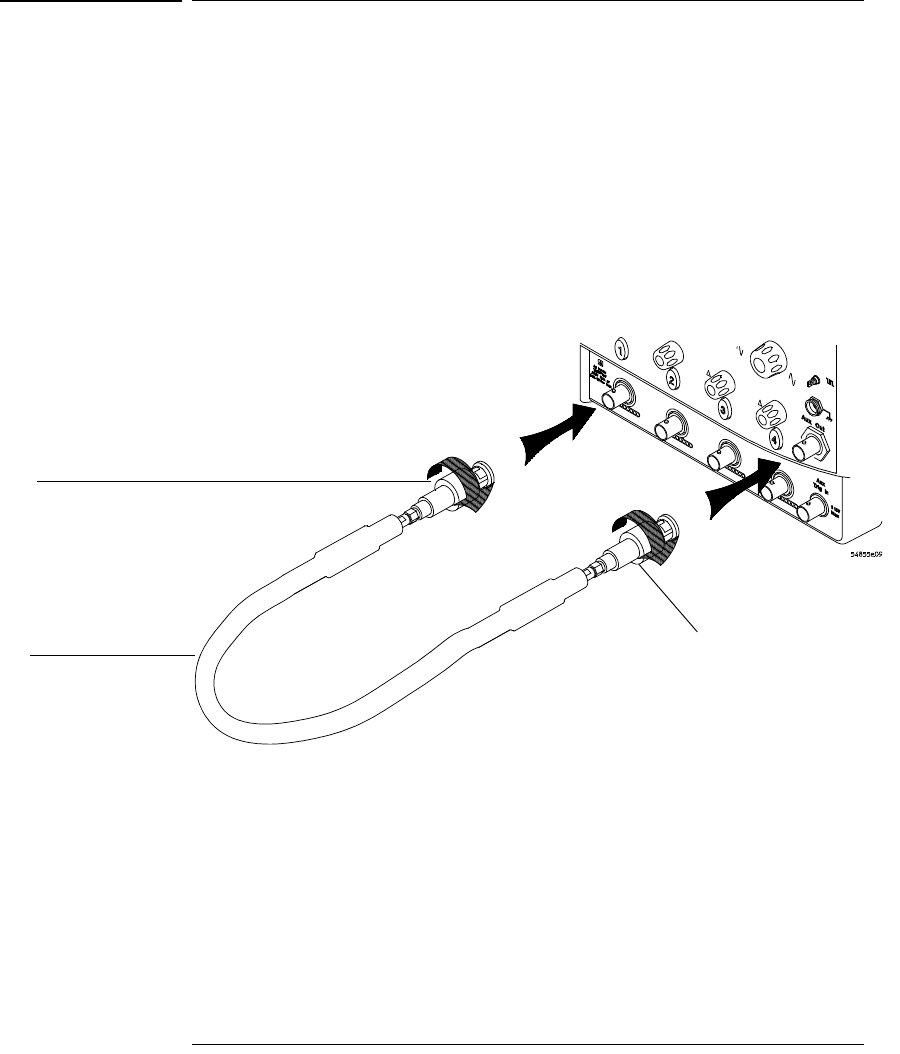

Figure 1-9
Connecting SMA to Precision BNC Adaptors
SMA cable
Thumb screw
SMA to precision
BNC adaptor
