User`s guide

Setting Up the Oscilloscope
To connect oscilloscope probes
1-19

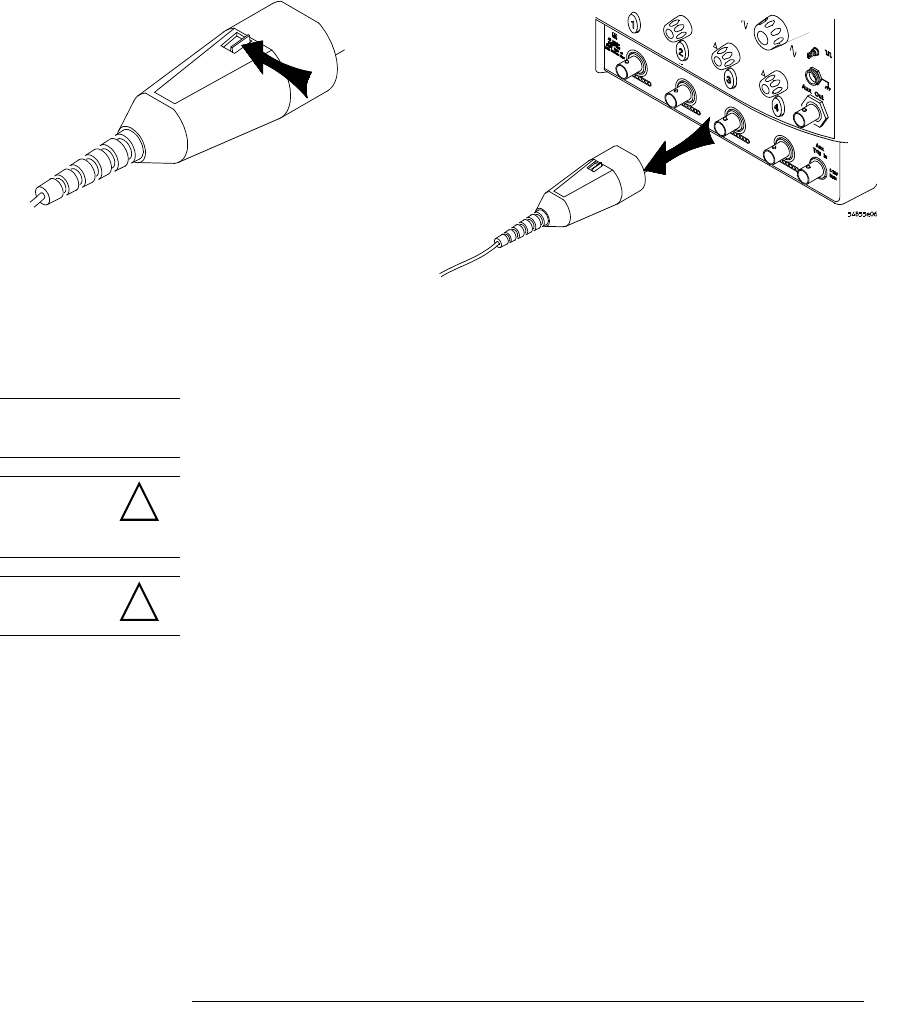

Figure 1-8
Disconnecting the Oscilloscope Probe
CAUTION Do not attempt to twist the snap-on probes on or off the oscilloscope’s BNC
connector. Twisting the probe connector body will damage it.
CAUTION For the 8000A series oscilloscopes do not exceed the maximum input voltage
rating. The maximum input voltage for 50 Ω inputs is 5 Vrms, CAT I. Maximum
voltage at 1 MΩ impedance is ±100 V (dc + ac) [ac < 10 kHz], CAT I.
CAUTION For the 80000B series oscilloscopes do not exceed the maximum input voltage
rating. The maximum input voltage for the 50 Ω inputs is ±5 Vpeak, CAT I.
!
!
