Chapter 6: Replacing Assemblies
To remove and replace the keyboard, touch screen, and flat-panel display assemblies
113
To remove and replace the keyboard, touch screen, and flat-panel
display assemblies
Use this procedure to disassemble and reassemble the front panel assembly, including the
keyboard and flat-panel display. When necessary, refer to other removal procedures. The
graphics in this chapter are representative of the oscilloscope at the time of this printing. Your
unit may look different.
1
Disconnect the power cable and remove the top and bottom cover.
2 Remove the front panel assembly from the chassis (see page 108).
3 Remove the ten Torx T10 screws that secure the front panel cover plate to the front
casting.

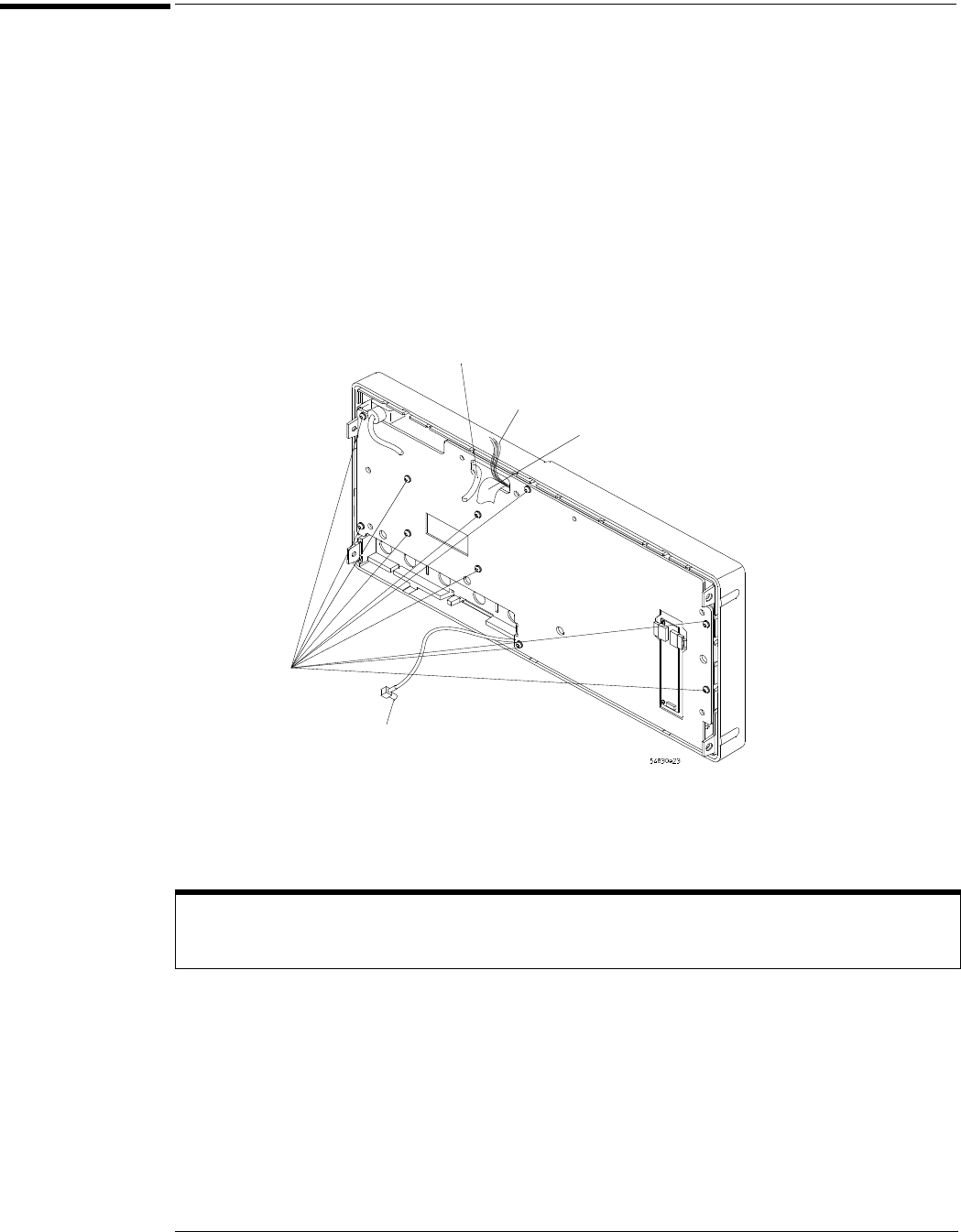

Figure 6-18
Front panel cover plate screws
4 Carefully feed the front-panel keyboard ribbon cable through the cable access hole
while separating the front panel cover plate from the front casting.
The display driver cable and touch screen USB cable remain attached to the cover plate.
Keep Long Screws Separate for Re-assembly
The four screws that fasten the keyboard to the front panel plate are longer than those around the perimeter
of the plate. Keep them separate for re-assembly.
Flat-panel display driver multi-
colored cable
T10 Screws (10)
Cal cable
T
ouc
h
screen
USB connector
Keyboard ribbon
cable
