Chapter 6: Replacing Assemblies
To remove and replace the AutoProbe assembly
104
To remove and replace the AutoProbe assembly
Use this procedure to remove and replace the AutoProbe assembly. When necessary, refer to
other removal procedures. The graphics in this chapter are representative of the oscilloscope at
the time of this printing. Your unit may look different.
1
Disconnect the power cable and remove the top and bottom sleeves.
2 Remove the AutoProbe connector assembly, the subpanel, and the probe connector
assembly that fits around the front-panel BNC connectors, by doing the following:
a Disconnect the mylar ribbon cable W8 from the Probe Power and Control Board, A9.
See “To disconnect and connect Mylar flex cables” on page 101.

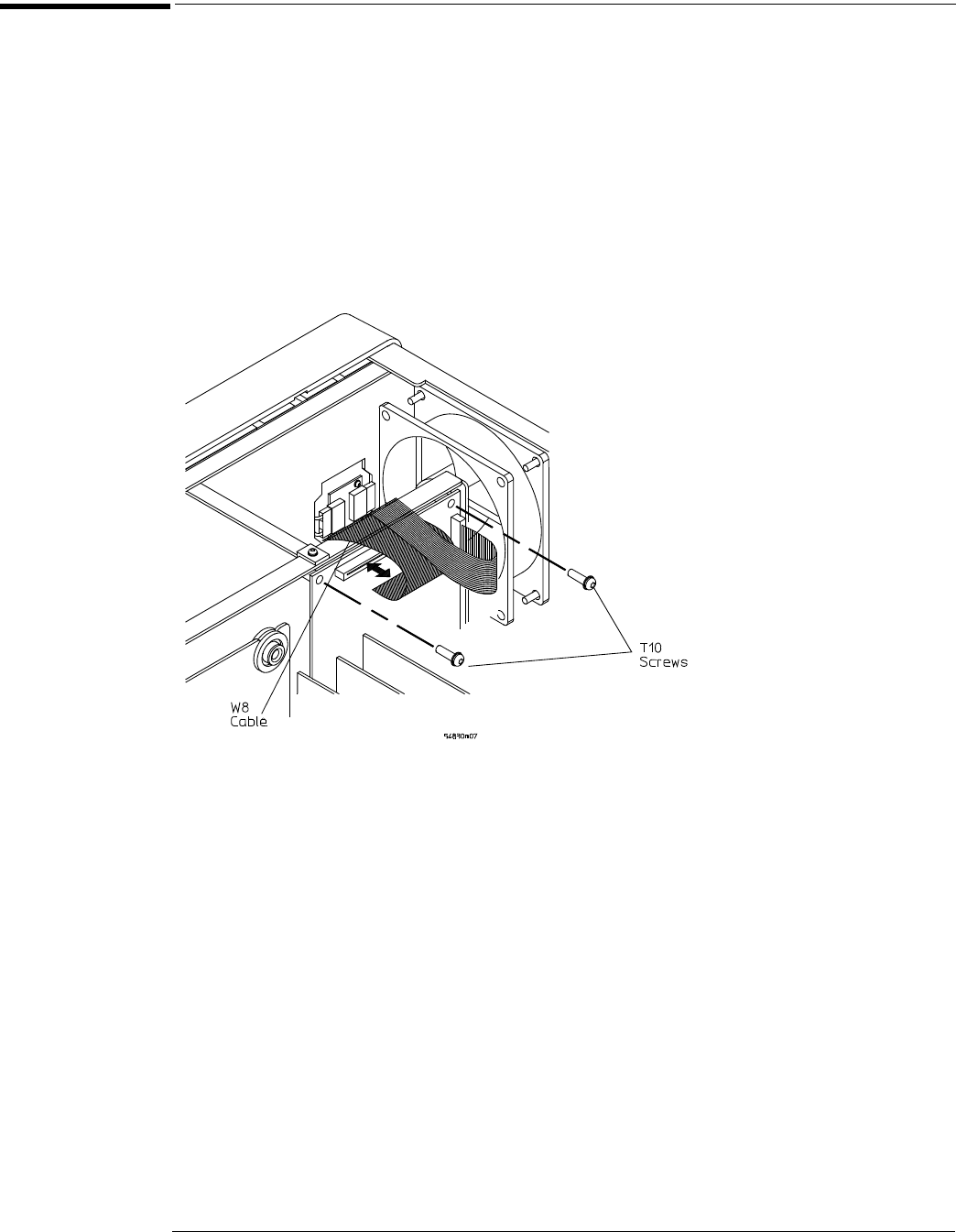

Figure 6-8
Disconnecting W8
b Locate the access hole in the front-panel assembly below and almost between channel
two and channel three attenuators. See Figure 6-9.
c Use a small screwdriver or other slender pointed object inserted through the access hole
to push the AutoProbe assembly faceplate out.
