Chapter 6: Replacing Assemblies
To remove and replace the CD-ROM drive
102
To remove and replace the CD-ROM drive
Use this procedure to remove and replace the CD-ROM drive on units so equipped (newer units
will not have internal CD-ROM drives; an optional external DVD drive will be available). When
necessary, refer to other removal procedures.The graphics in this chapter are representative of
the oscilloscope at the time of this printing. Your unit may look different.
1
Disconnect the power cable from the instrument and remove the top sleeve.
2 Remove the following cables:
•SATA Cable
• CD-ROM Power cable
3
Using a Torx T10 driver, remove the three CD-ROM support bracket screws holding
the CD-ROM drive in place.
When re-assembling, torque the three Torx T10 screws to 5 in-lb.
4 Using a T20 driver remove the back panel screw holding the CD-ROM drive in place.
When re-assembling, torque the Torx T20 screw to 18 in-lb.
5
Move the CD-ROM drive back towards the front frame, then lift and pull to remove.

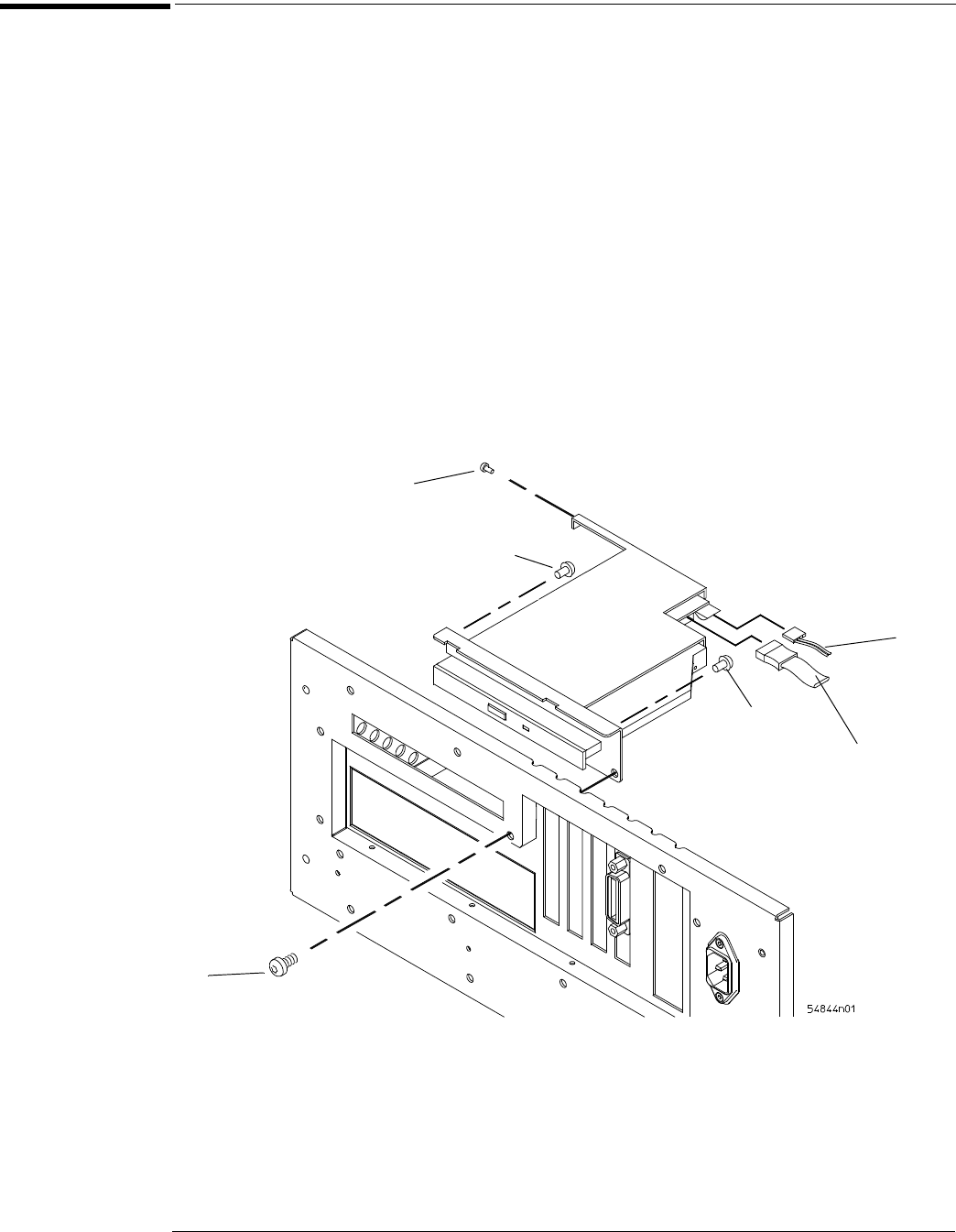

Figure 6-6
Removing the CD-ROM assembly
Torx
T20
SATA cable
Power
cable
Torx
T10
Torx
T10
Torx
T10
