Omitting Spurs
The Omit Spurs function plots the currently loaded results without displaying
any spurs that may be present.
1
On the View menu, click Display Preferences. See Figure 61.
2
In the Display Preferences dialog box, uncheck Spurs and click OK. See
Figure 62.
• The graph is displayed without spurs. See Figure 63 on page 98.
3
To re-display the spurs, check Spurs in the Display Preferences dialog box.

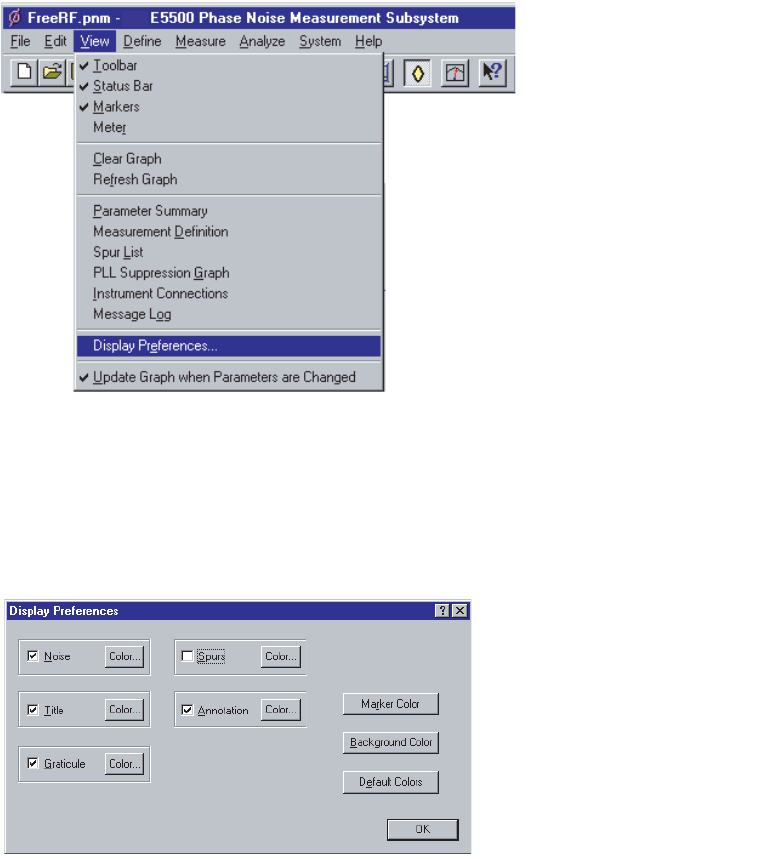

Figure 61 Navigate to display preferences
Figure 62 Uncheck spurs
