96 Agilent E5505A User’s Guide
4
Expanding Your Measurement Experience
Viewing Markers
The marker function allows you to display the exact frequency and amplitude
of any point on the results graph.
• To access the marker function, on the View menu, click Markers. See
Figure 59. In the dialog box containing Marker buttons, up to nine markers
may be added. To remove a highlighted marker, click the Delete button. See
Figure 60

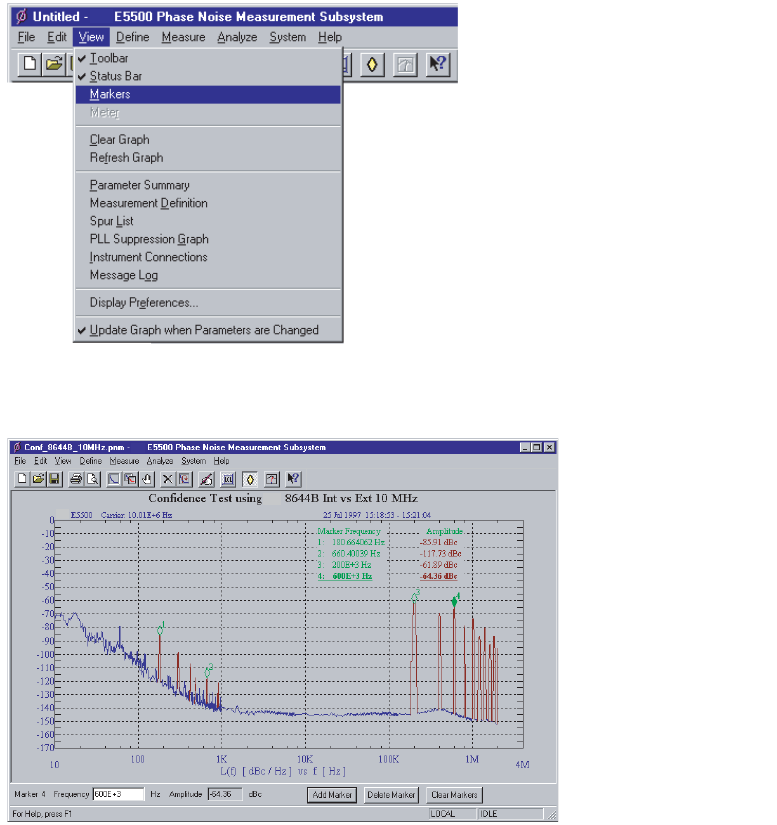

Figure 59 Navigate to markers
Figure 60 Adding and deleting markers
