86 Agilent E5505A User’s Guide
4
Expanding Your Measurement Experience
If the output amplitude of your DUT is not sufficient to provide an adequate
measurement noise floor, it is necessary to insert a low-noise amplifier
between the DUT and the test set. Refer to the section “Inserting a Device" on
page 122 for details on determining the effect the amplifier’s noise will have on
the measured noise floor.

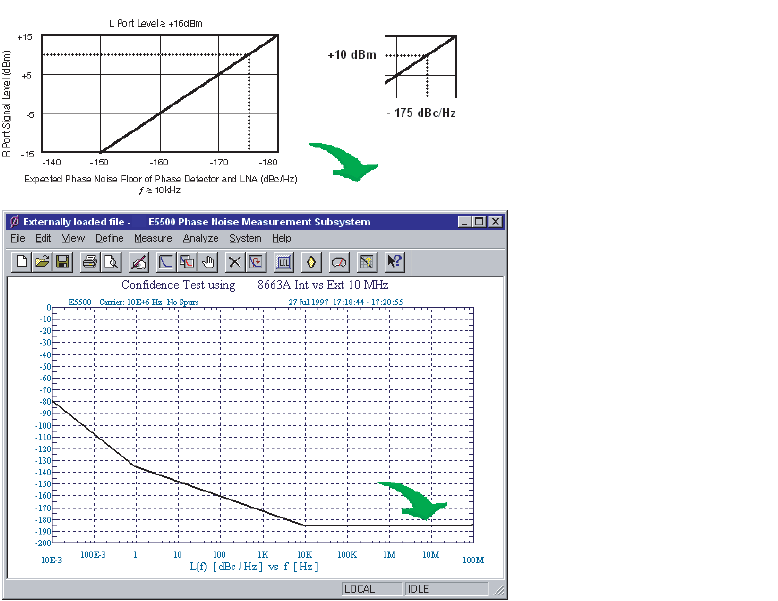

Figure 52 Noise floor example
