Expanding Your Measurement Experience

Agilent E5505A User’s Guide 85

Setting up the 8663A 10 MHz measurement

The signal amplitude at the R input (Signal Input) port on the test set sets the

measurement noise floor level. Use the graph in Figure 51 and the example in

Figure 52 on page 86 to determine the amplitude. For more information, refer

to Chapter 16, “Reference Graphs and Tables.”

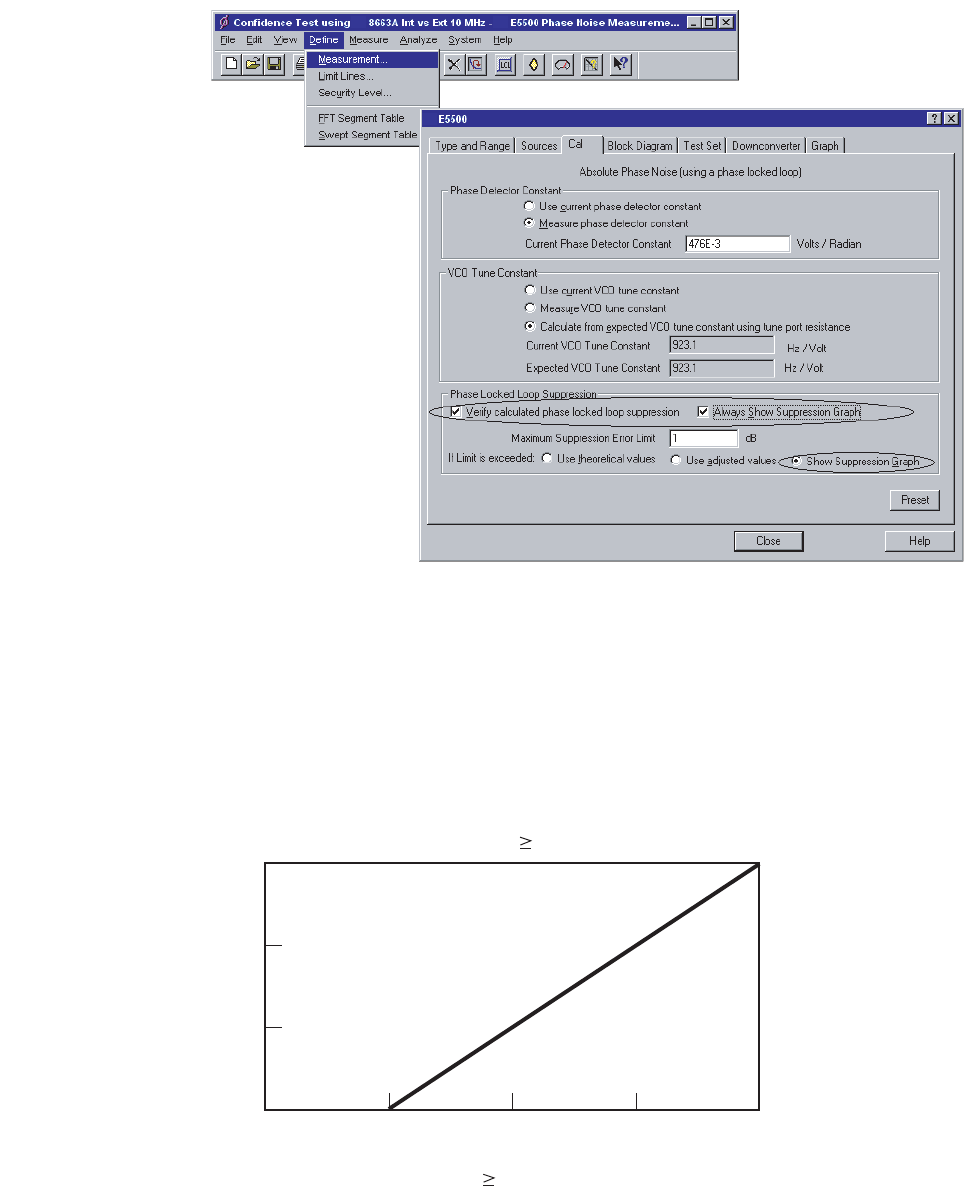

Figure 50 Selecting loop suppression verification

e5505a_user_select_loop

24 Jun 04 rev 3

Figure 51 Noise floor for the 8644B 10 MHz measurement

-140 -160 -170 -180-150

Expected phase noise floor of system (dBc/Hz)

f 10kHz

R Port signal level (dBm)

-15

+15

-5

n5505a_exp_phase_noise

25 Feb 04 rev 1

L Port level +15dBm
