When you have completed these operations, click the Close button.
Selecting loop suppression verification
1 From the Define menu, choose Measurement; then choose the Cal tab from
the Define Measurement window.
2 In the Cal dialog box, check Verify calculated phase locked loop
suppression and Always Show Suppression Graph. Select If limit is
exceeded: Show Loop Suppression Graph. See Figure 50 on page 85.
3 When you have completed these operations, click the Close button.

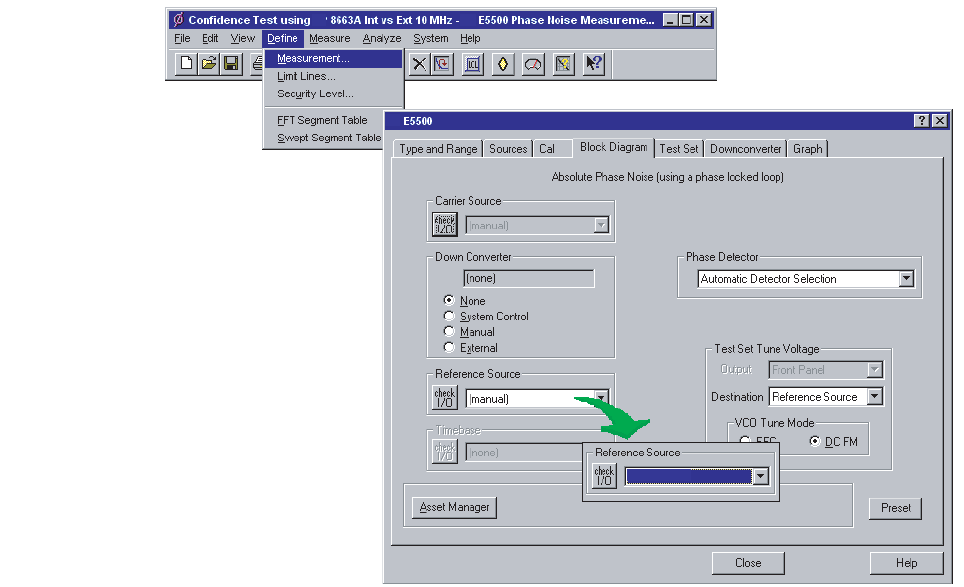

Figure 49 Selecting a reference source
e5505_user_select_ref_source8644
