82 Agilent E5505A User’s Guide
4
Expanding Your Measurement Experience
The appropriate measurement definition parameters for this example
have been pre-stored in this file. Table 10 on page 94 lists the parameter
data that has been entered for the RF Synthesizer using a DCFM
measurement example.
4
Using Figure 48 on page 82 as a guide, navigate to the Sources tab
a
Enter the carrier (center) frequency of your DUT (5 MHz to 1.6 GHz);
enter the same frequency for the detector input frequency.
b
Enter the VCO (Nominal) Tuning Constant (see Table 8 on page 83).
c
Enter the Tune Range of VCO (see Table 8 on page 83).
d
Enter the Center Voltage of VCO (see Table 8 on page 83).
e
Enter the Input Resistance of VCO (see Table 8 on page 83)
NOTE
The source parameters shown in Tab le 1 0 on page 94 may not be appropriate for the
reference source you are using. To change these values, refer toTabl e 8, “Tuning
characteristics for various sources,” on page 83, then continue with step 4 below.
Otherwise, go to “Beginning the measurement" on page 87.

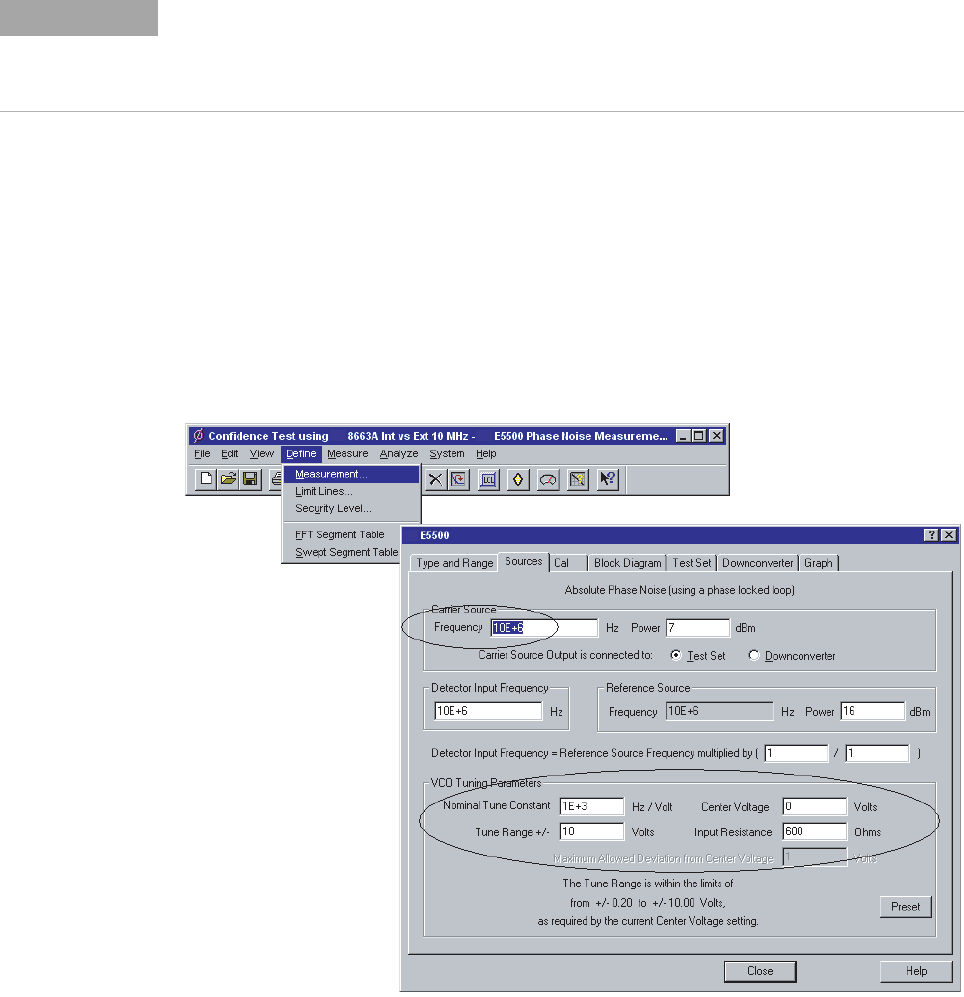

Figure 48 Sources tab in define measurement window
