Expanding Your Measurement Experience

Agilent E5505A User’s Guide 81

Testing the 8644B Internal/External 10 MHz

This measurement example helps you measure the absolute phase noise of an

RF synthesizer.

Required equipment

This measurement requires an Agilent 8644B in addition to the phase noise

test system and your DUT.

You also need the coaxial cables and adapters

necessary to connect the DUT and reference source to the test set.

Defining the measurement

From the file menu of the E5505A User Interface, choose Open. If

necessary, choose the drive or directory where the file you want is stored.

In the File Name box, choose “Conf_8644B_10MHz.pnm.” See Figure 41.

Click the Open button.

CAUTION

To prevent damage to the test set’s hardware components, do not apply the input signal to

the signal input connector until the input attenuator has been correctly set for the desired

configuration, as shown in Ta b l e 8 on page 83. Apply the input signal when the connection

diagram appears.

NOTE

To ensure accurate measurements allow the DUT and measurement equipment to warm

up at least 30 minutes before making the noise measurement.

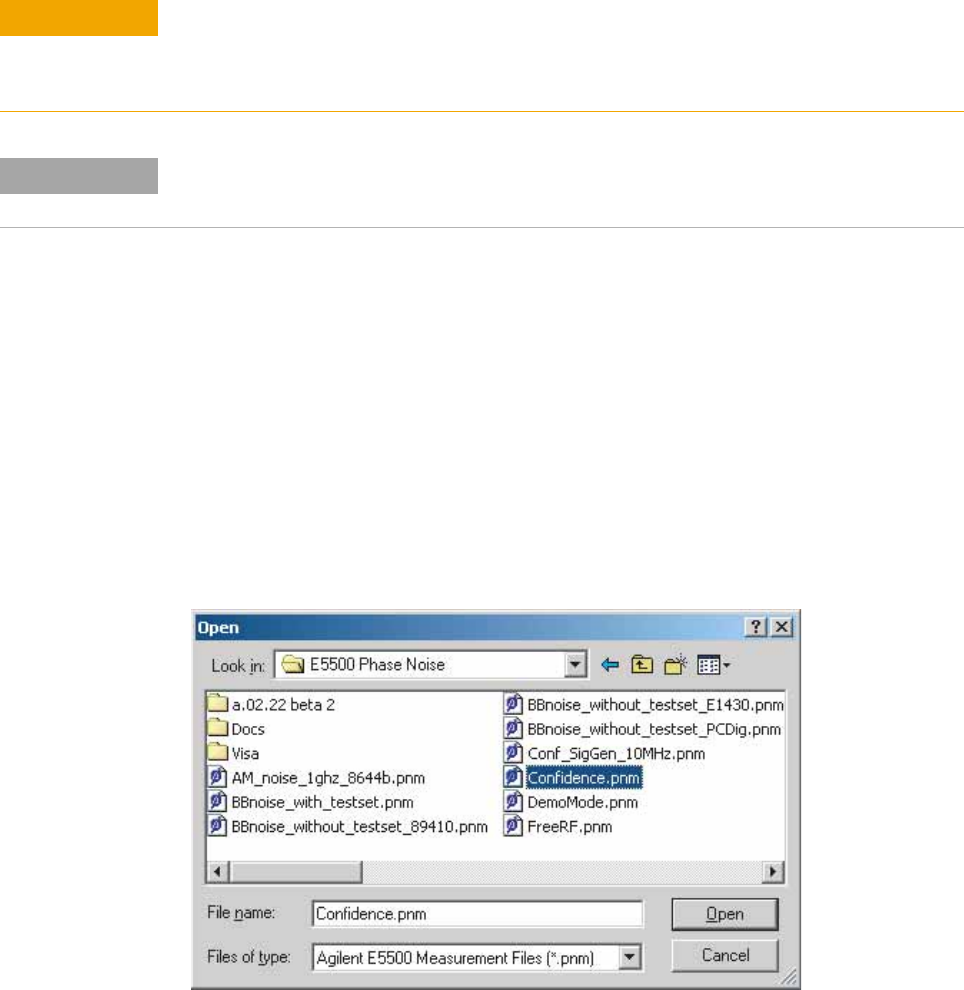

Figure 47 Select the parameters definition file
