Expanding Your Measurement Experience
4
Agilent E5505A User’s Guide 71
If the output amplitude of your DUT is not sufficient to provide an adequate
measurement noise floor, it is necessary to insert a low-noise amplifier
between the DUT and the test set. Refer to “Inserting a Device" on page 122 for
details on determining the effect the amplifiers noise will have on the
measured noise floor.
Beginning the measurement
1
From the Measurement menu, choose New Measurement. See Figure 41.
2
When the Do you want to perform a New Calibration and Measurement?
prompt appears, click Yes.
3
When the Connect Diagram dialog box appears, click on the hardware
pull-down arrow and select your hardware configuration from the list. See
Figure 43 on page 72.

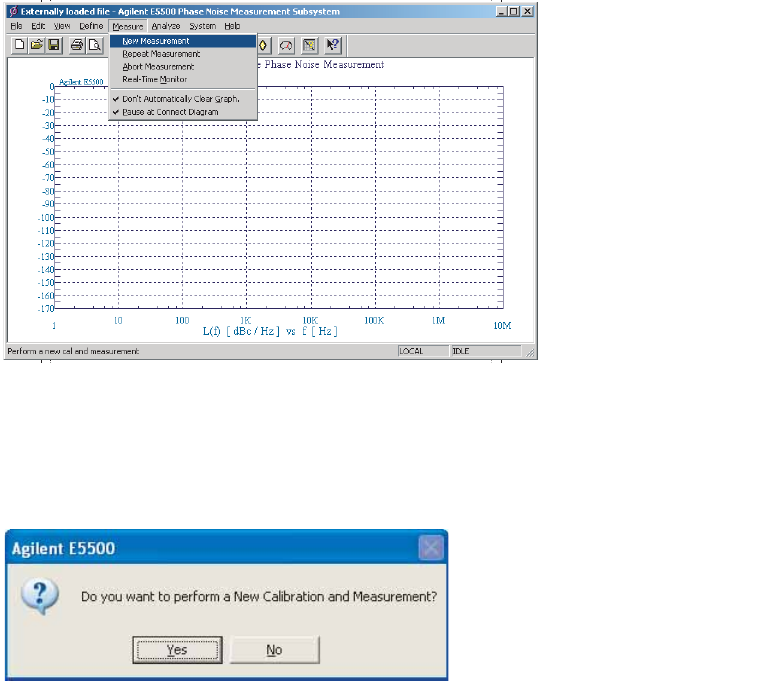

Figure 41 Selecting new measurement
Figure 42 Confirm new measurement
