Expanding Your Measurement Experience
4
Agilent E5505A User’s Guide 69
Selecting loop suppression verification
1
Using Figure 38 as a guide, navigate to the Cal tab.
2
Check Verify calculated phase locked loop suppression and Always Show
Suppression Graph. Select If limit is exceeded: Show Loop Suppression
Graph.
3
When you have completed these operations, click the Close button.
Setting up for the 8663A 10 MHz measurement
The signal amplitude at the test set’s R input (Signal Input) port sets the
measurement noise floor level. Use Figure 39 on page 70 and Figure 40 on
page 70 to help determine the amplitude required to provide a noise floor level
that is below the expected noise floor of your DUT. For more information
about this graph, refer to “Reference Graphs and Tables" on page 361.

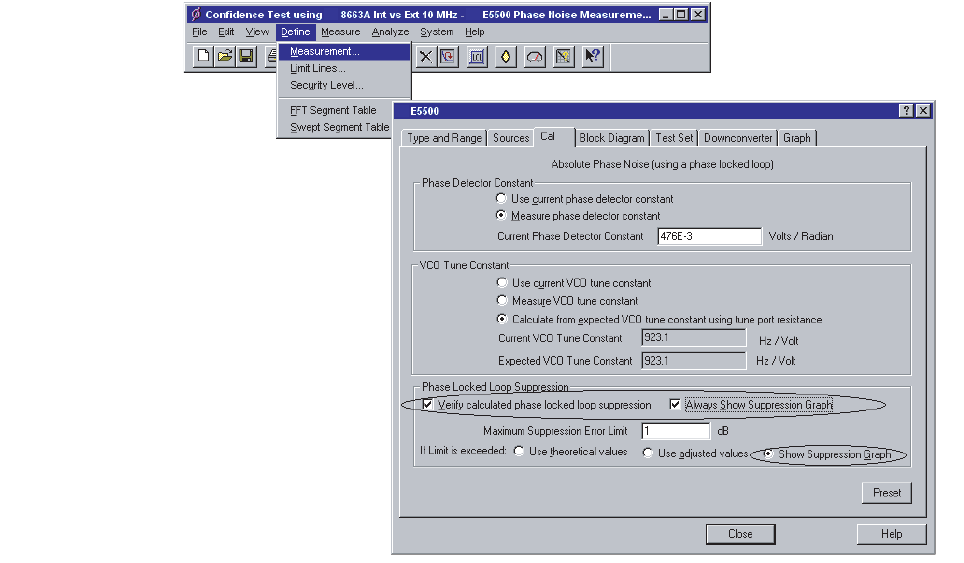

Figure 38 Selecting loop suppression verification
e5505a_user_select_loop
24 Jun 04 rev 3
