Expanding Your Measurement Experience
Selecting a reference source
1
Using Figure 37 as a guide, navigate to the Block Diagram tab.
2
From the Reference Source pull-down list, select Agilent-8663.
3
When you have completed these operations, click the Close button.
Table 5 Tuning characteristics for various sources
VCO Source Carrier
Freq.
Tuning Constant
(Hz/V)
Center
Voltage
(V)
Voltage
Tuning Range
(
±
V)
Input
Resistance
(
Ω)
Tuning
Calibration
Method
Agilent 8662/3A
EFC
DCFM
υ
0
5 E – 9 x υ
0
FM Deviation
0
0
10
10
1E + 6
1 K (8662)
600 (8663)
Measure
Compute
Compute
Agilent 8642A/B FM Deviation 0 10 600 Compute
Agilent 8644B FM Deviation 0 10 600 Compute
Other Signal Generator
DCFM Calibrated for ±1V FM Deviation 0 10 R
in
Compute
Other User VCO Source Estimated within a
factor of 2
–10 to
+10
1 E + 6 Measure

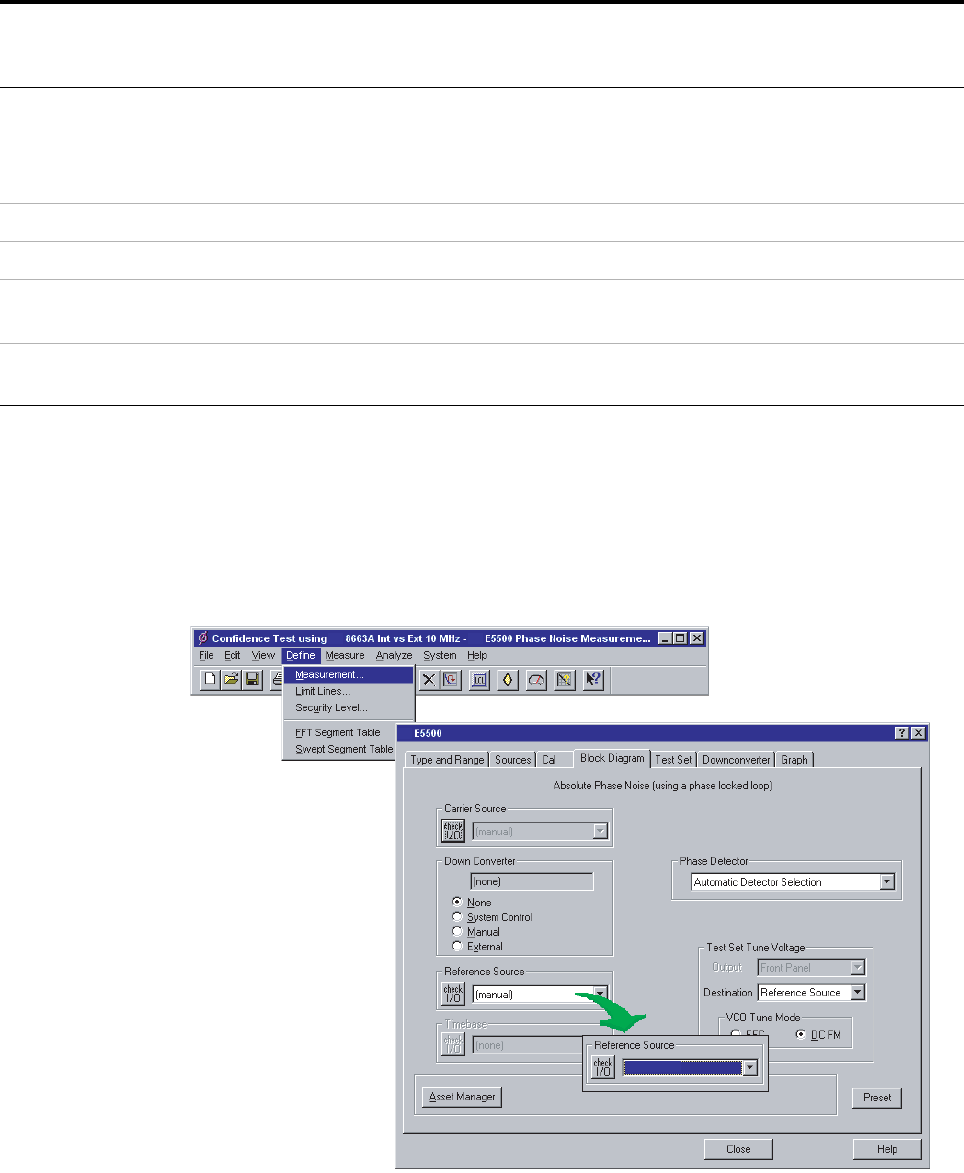

Figure 37 Selecting a reference source
e5505a_user_select_ref_source
24 Jun 04 rev 3
Agilent-8257
