Agilent E5505A User’s Guide 67
3
Click the Open button.
The appropriate measurement definition parameters for this example have
been pre-stored in this file. Table 7 on page 79 lists the parameter data that
has been entered for this measurement example.)
4 Using Figure 36 as a guide, navigate to the Sources tab.
a Enter the carrier (center) frequency of your DUT (5 MHz to 1.6 GHz).
Enter the same frequency for the detector input frequency.
b Enter the VCO (Nominal) Tuning Constant (see Table 5 on page 68).
c Enter the Tune Range of VCO (see Table 5).
d Enter the Center Voltage of VCO (see Table 5).
e Enter the Input Resistance of VCO (see Table 5).
NOTE
Note that the source parameters entered for step 2 in Ta bl e 7 on page 79 may not be
appropriate for the reference source you are using. To change these values, refer to Ta b l e 5
on page 68, then continue with step 4 below. Otherwise, go to “Beginning the
measurement" on page 71.

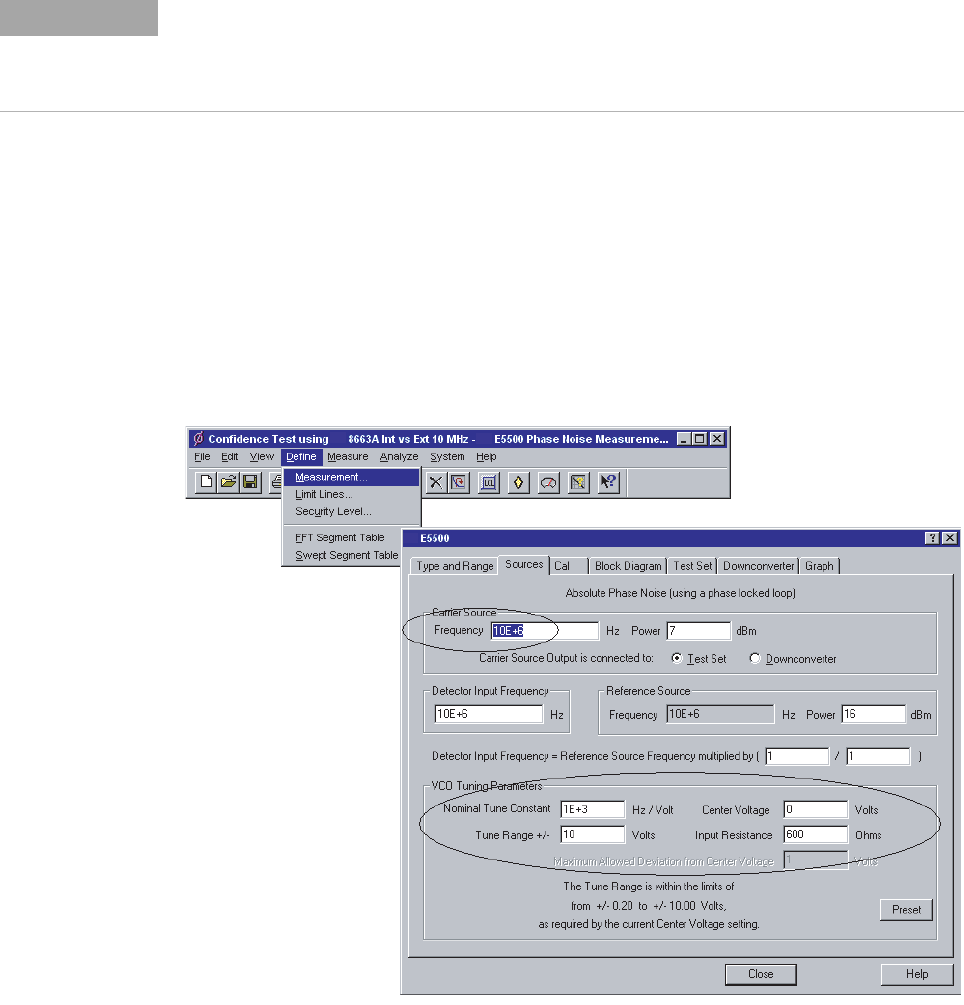

Figure 36 Enter Source Information
e5505a_user_enter_source_info
