Expanding Your Measurement Experience
4
Agilent E5505A User’s Guide 61
3
From the Reference Source pull-down list, select Agilent 8663A.
a
A green check-mark appears after an automatic I/O check has been
successfully performed by the software. If nothing happens, click the
Check I/O button to manually initiate the check.
b
A red circle with a slash appears if the I/O check is unsuccessful.
c
If the I/O check fails, click the Asset Manager button to return to the
Asset Manager (see Figure 31).
d
In the Asset Manager, verify that the 8663A is configured correctly. Do
the following:

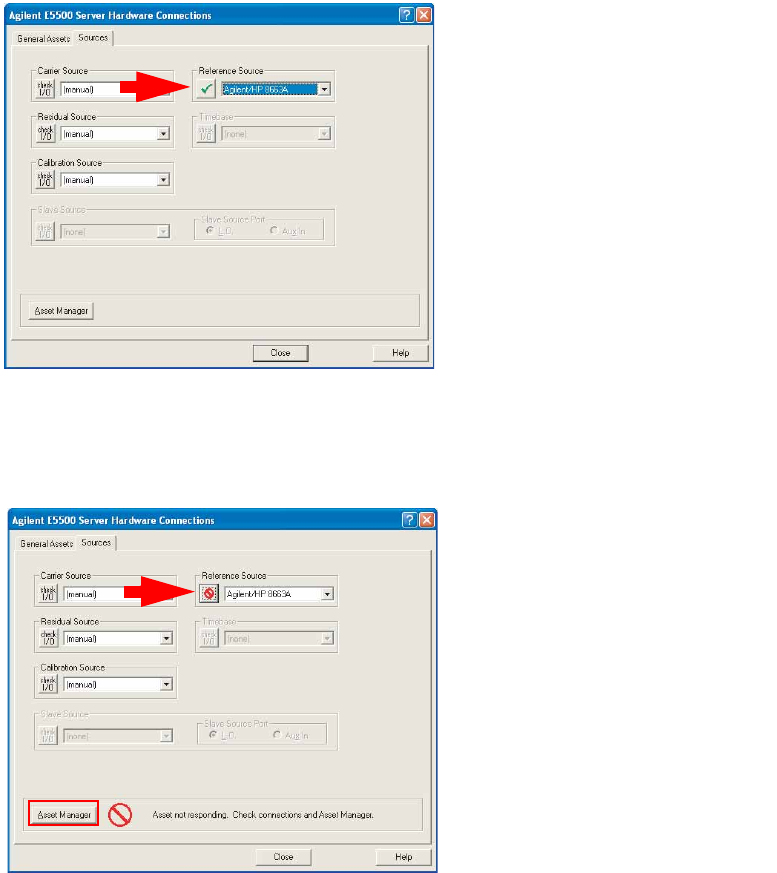

Figure 30 Successful I/O check
Figure 31 Failed I/O check
