Expanding Your Measurement Experience
4
Agilent E5505A User’s Guide 59
10
In the Asset Manager window, select the source in the left window pane.
Click the check-mark button on the toolbar to verify connectivity. See
Figure 26.
• The Asset Manager displays a message verifying the connection to your
asset. This indicates that you have successfully configured a source. (See
Figure 27.)
11
To exit the Asset Manager, on the menu select Server/Exit.
12
Perform the procedure “Using the Server Hardware Connections to Specify
the Source" on page 60.

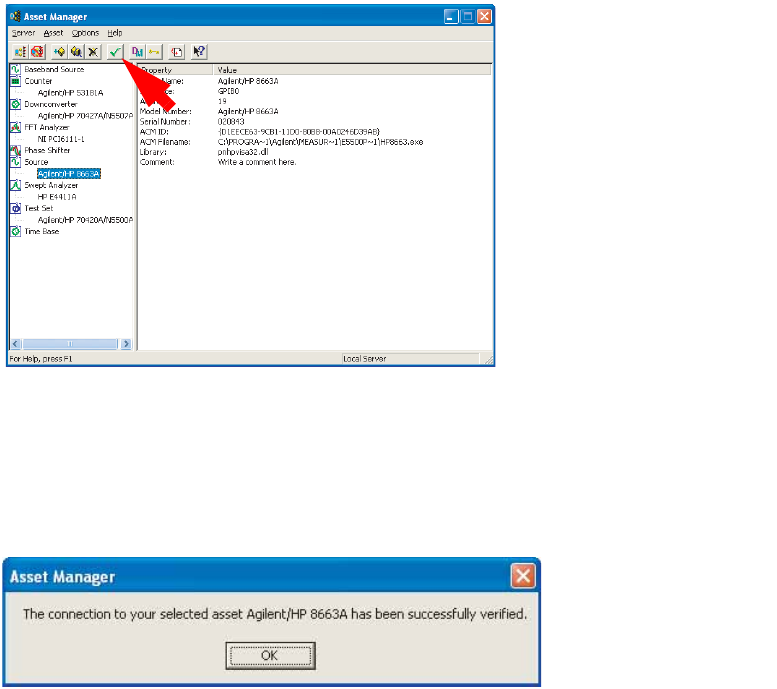

Figure 26 Click check-mark button
Figure 27 Confirmation message
