Expanding Your Measurement Experience
4
Agilent E5505A User’s Guide 57
4
Click on the source to be added, then click the Next button (see Figure 22).
5
From the Interface pull-down list, select GPIB0. See Figure 23.
6
In the Address box, type 19.
7
In the Library pull-down list, select the Agilent Technologies VISA. Click
the Next button.

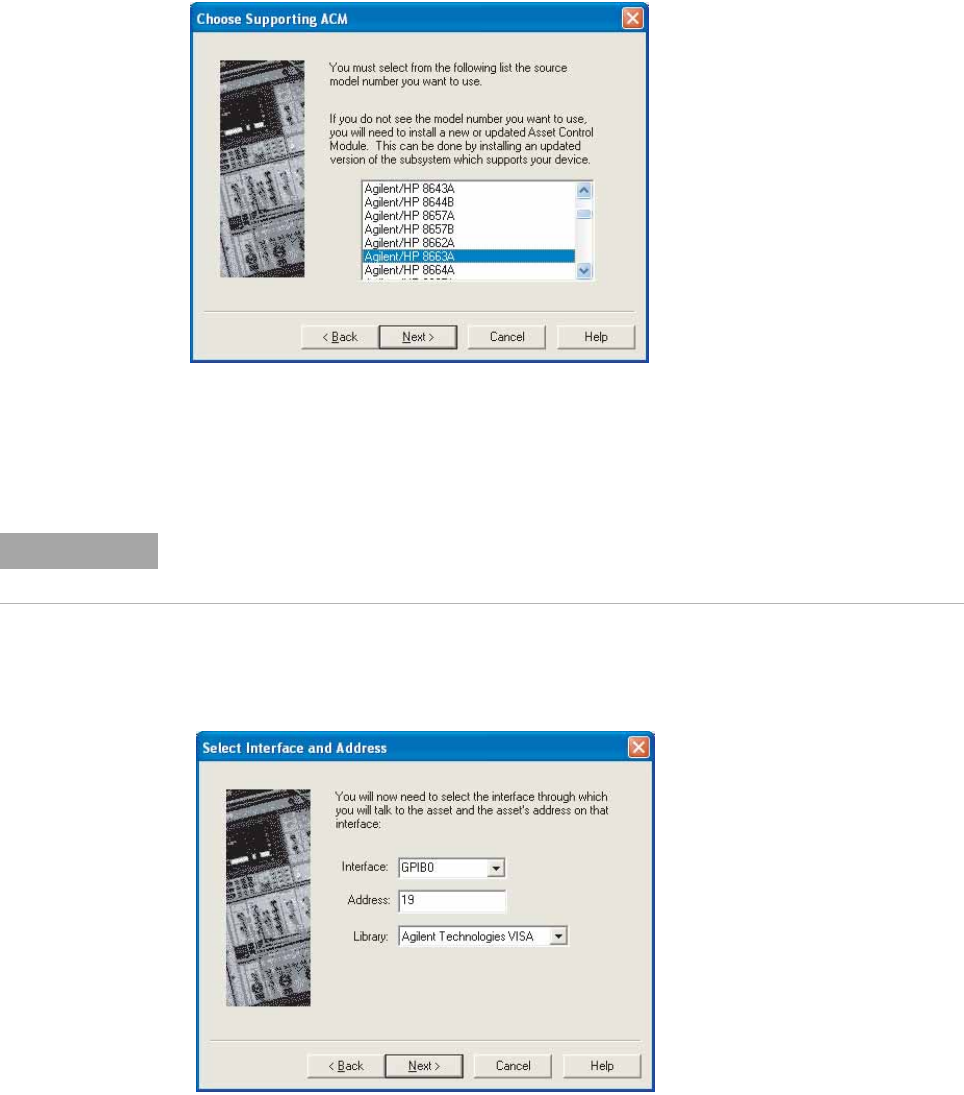

Figure 22 Choose source
NOTE
19 is the default address for a source. Tab le 4 on page 63 shows the default GPIB address
for all system instruments.
Figure 23 Select I/O library
