54 Agilent E5505A User’s Guide
4
Expanding Your Measurement Experience
Starting the Measurement Software
1
Make sure your computer and monitor are turned on.
2
Place the E5500 Phase Noise Measurement System software disk in the disc
holder and insert in the DVD-R drive.
3
Using Figure 18 as a guide, navigate to the E5500 User Interface.

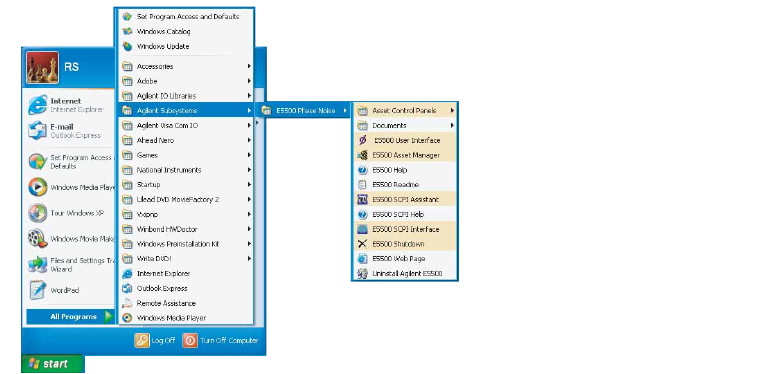

Figure 18 Navigate to E5500 user interface
