PC Digitizer Performance Verification
20
Agilent E5505A User’s Guide 453
5 Select the FFT Analyzer Asset
Control Panel.
•
Path: System\Asset Control Panels\FFT Analyzer
6 Configure the FFT Analyzer’s Asset
Control Panel.
•
Span: 0 to 2 MHz
•
Window Type: Flattop
•
Sweep: Continuous
•
Marker: Enable
7 Connect the PC digitizer adapter’s
input connector to the output of the
function generator.
•
See diagram in step 1 on page 451.

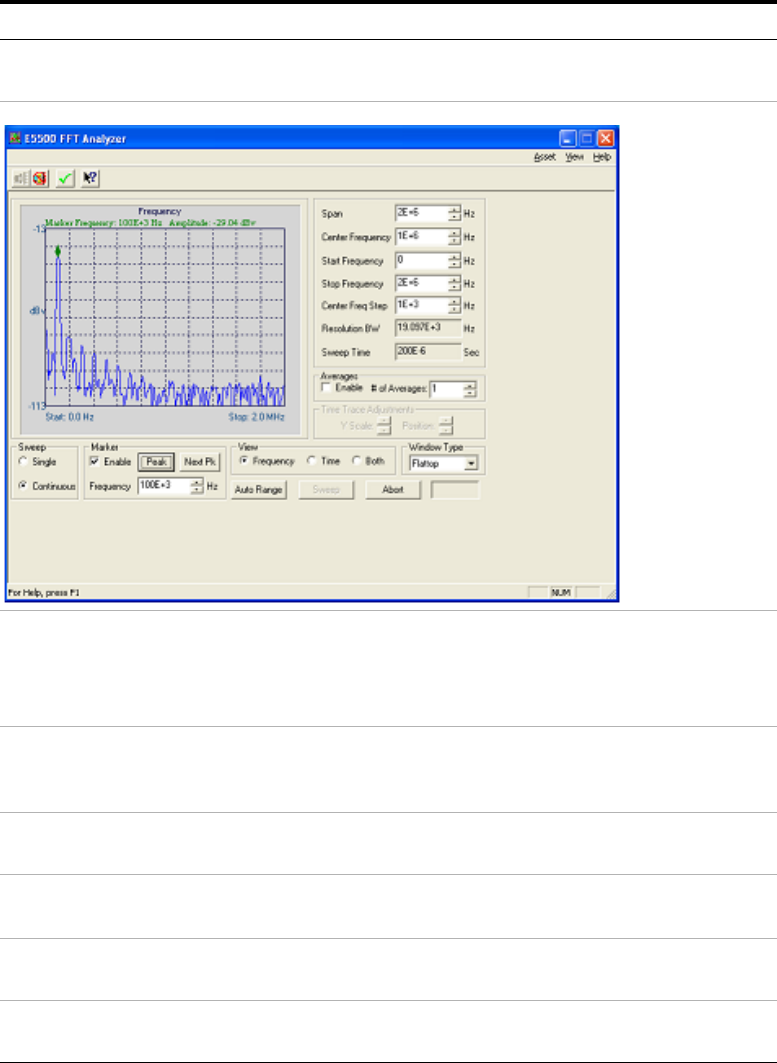

8 Click the Peak button.
•
The Frequency screen should reflect the 100 kHz
power specification: –29.00 dBv, ± 0.25 dBv
9 Reconfigure the Function Generator.
•
Frequency: 1.99 MHz
•
Amplitude: 100 mV peak to peak
10 Click the Peak button.
•
The Frequency screen should reflect the 1.99 MHz
power specification: –29.00 dBv, ± 0.5 dBv
11 Close the FFT Analyzer’s Asset
Control Panel.
•
This concludes the procedure.
To verify the PC digitizer card input’s performance (continued) (continued)
Step Action
