452 Agilent E5505A User’s Guide
20
PC Digitizer Performance Verification

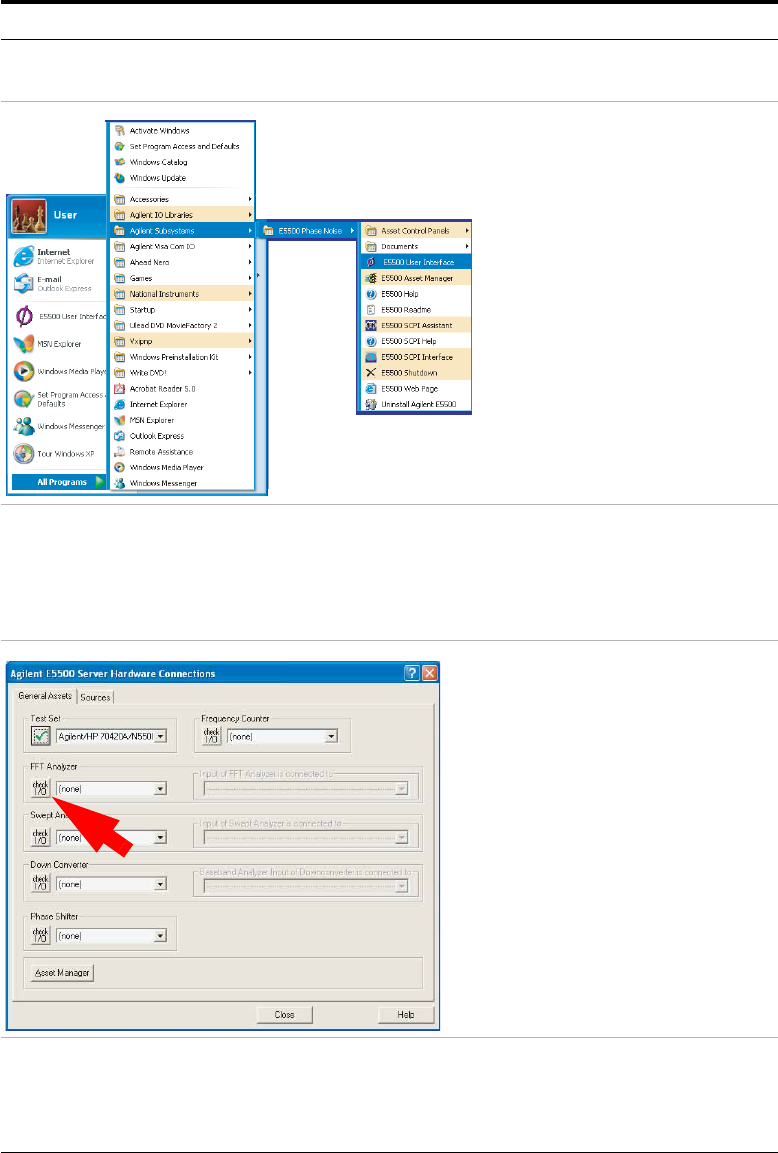

2 Open the E5505A phase noise
software.
•
Path: Start\Programs\Agilent Subsystems\E5500
Phase Noise System\E5500 User Interface
3 Click FFT Analyzer Check I/O button
in Server Hardware Connections to
verify the PC digitizer’s connectivity.
•
Path: System\Server Hardware Connections
•
A green check-mark appears on the button to
confirm connectivity. If a red circle with a slash
appears, check hardware connections and try
again.
4 Configure the function generator
using the appropriate keys on the
instrument.
•
Frequency: 100 kHz
•
Amplitude: 100 mV peak to peak
•
For instructions, refer to the function generator’s
user’s guide.
To verify the PC digitizer card input’s performance (continued) (continued)
Step Action
