PC Digitizer Performance Verification
20
Agilent E5505A User’s Guide 451
PC Digitizer Card Input Performance Verification
This procedure verifies the Input performance of the PC digitizer card and
adapter. Perform this procedure periodically to ensure the proper functioning
of these two components, which affect measurement accuracy.
Required equipment
Function generator
• Frequency: 2 MHz
• Calibrated peak to peak
To verify the PC digitizer card input’s performance
Step Action

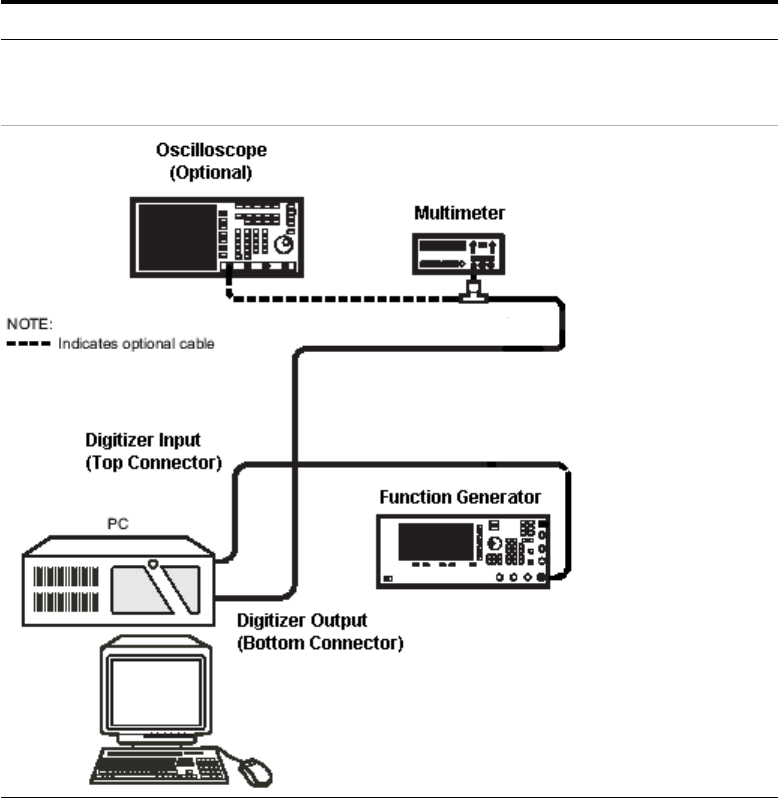

1 Connect the PC digitizer adapter’s
input connector to the output of the
function generator.
