450 Agilent E5505A User’s Guide
20
PC Digitizer Performance Verification

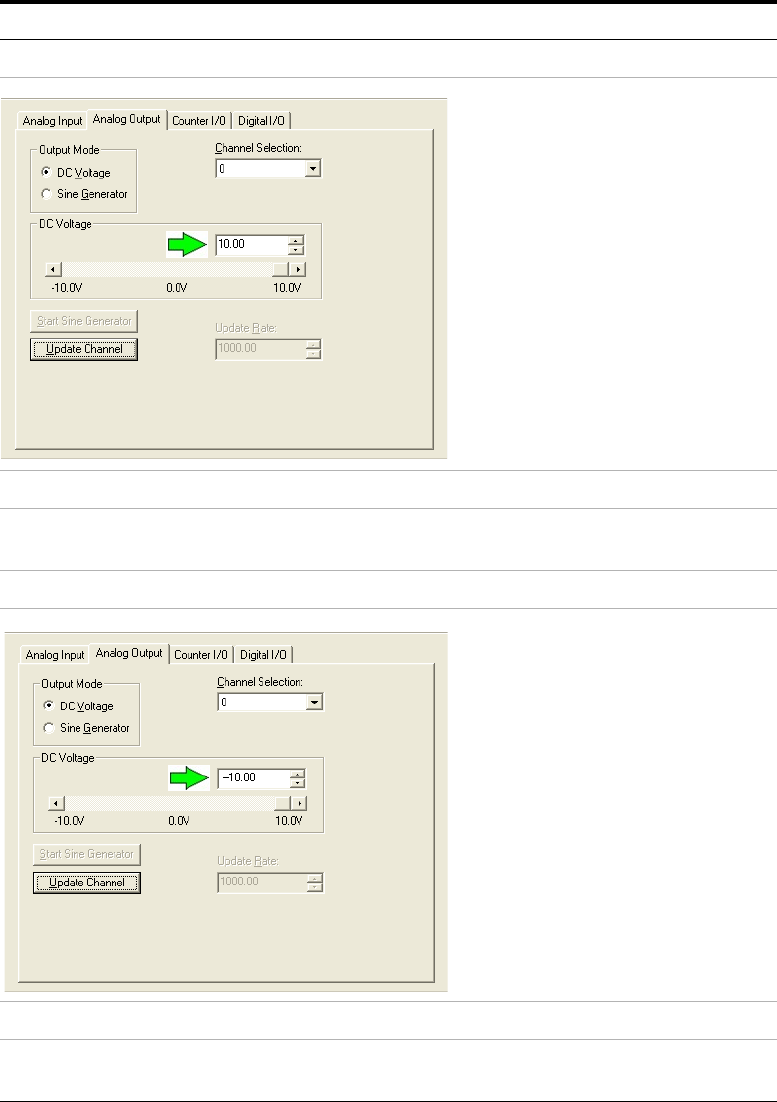

9 Enter +10 V in the DC Voltage window.
10 Click the Update Channel button.
11 Confirm that the multimeter or oscilloscope
reads +5 V (±10%).
•
PC digitizer adapter output specification is
+5 V, ±10%.
12 Enter –10 V in the DC Voltage window.
13 Click the Update Channel button.
14 Confirm that the multimeter or oscilloscope
reads –5 V (±10%).
•
PC digitizer adapter output specification is
–5 V, ±10%.
To verify the PC digitizer card input’s performance (continued)
Step Notes
