Introduction and Measurement

Agilent E5505A User’s Guide 45

Powering the System Off

To power off a racked system

On the E5500 software menu, select File\Exit. Always shut down the E5500

software before powering off the E5505A system.

Press the system power switch (front, top right of the rack) to the off

position.

To power off a benchtop system

On the E5500 software menu, select File\Exit.

Press the power switch on each instrument to the off position.

Using the E5500 Shutdown Utility

If you receive error messages during the power on or off procedures, or during

operation, use the E5500 Shutdown utility to shut down the system. This

utility automatically fixes most errors and restores functionality to the system.

If you still receive errors after running the E5500 Shutdown utility, call your

local Agilent Technologies Service Center.

To run the E5500 Shutdown utility

Double-Click on the E5500 Shutdown utility shortcut on the PC desktop

and follow the onscreen instructions. (You can also navigate to it using the

menu path Start/Agilent Subsystems/E5500 Phase Noise/Shutdown.)

When the shutdown utility has finished, use the Start menu to shut down

the PC. Then power the system off.

CAUTION

Always shut down the E5500 software before powering off the E5505A system.

Failure to do so may produce errors in the stem, and result in an inoperable system

or inaccurate measurements. If you do receive errors during shutdown, startup, or

operation, use the E5500 Shutdown utility to restore functionality to the system.

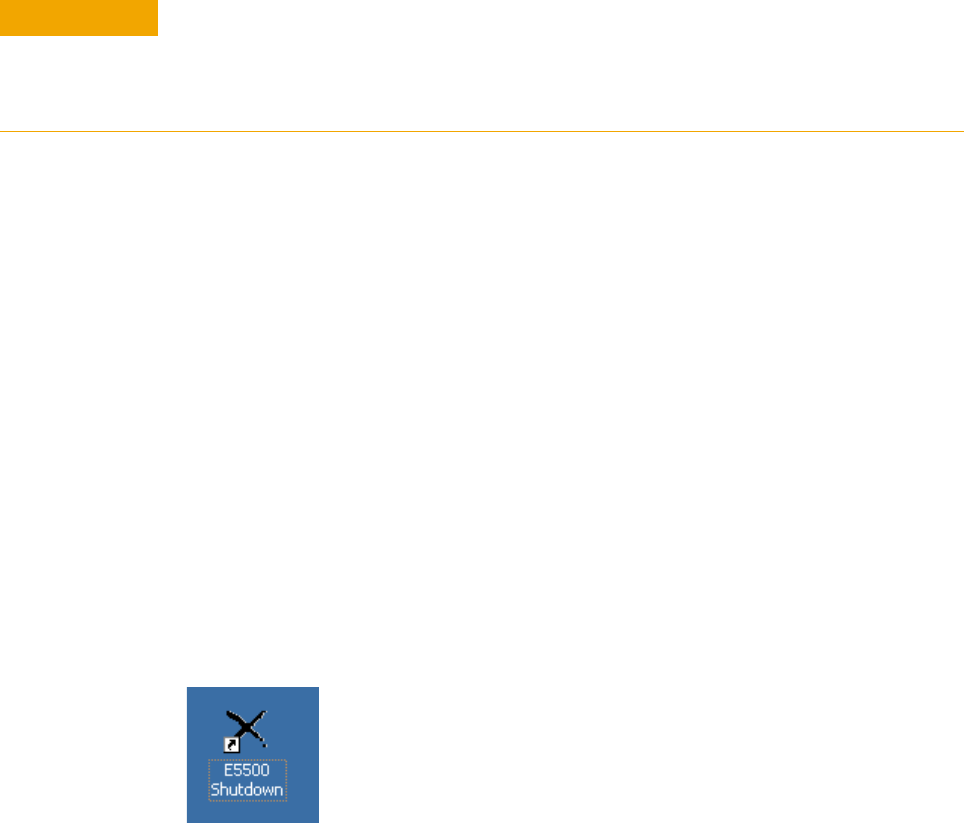

Figure 12 Shutdown utility icon
