446 Agilent E5505A User’s Guide
20
PC Digitizer Performance Verification
Verifying PC Digitizer Card Output Performance
This procedure verifies the output performance of the PC digitizer card and
adapter. Perform this procedure periodically to ensure the proper functioning
of these two components, which affect measurement accuracy.
Required equipment
• Multimeter or oscilloscope (for reading output voltage)
To verify the PC digitizer card input’s performance
Step Notes
1 Turn off the phase noise software.
2 Connect the PC digitizer card adapter’s
output to the input of either a multimeter or
oscilloscope.
•

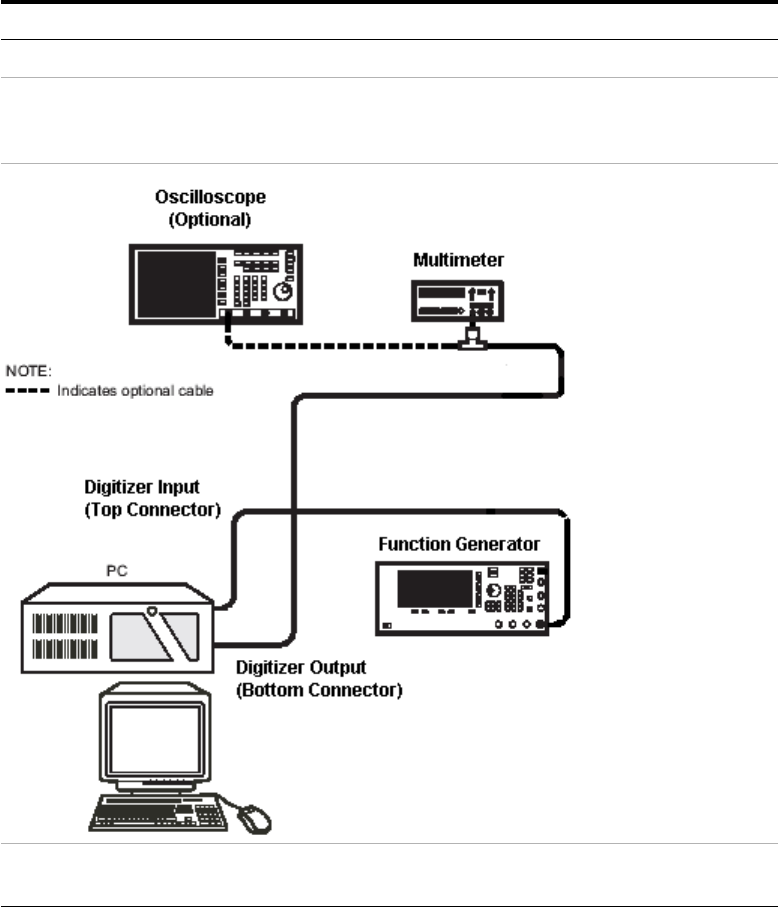

See connection diagram below.
3 Open the NI-DAQ Measurement and
Automation Explorer application.
•
Path: Start\Programs\National
Instruments\Measurement & Automation
